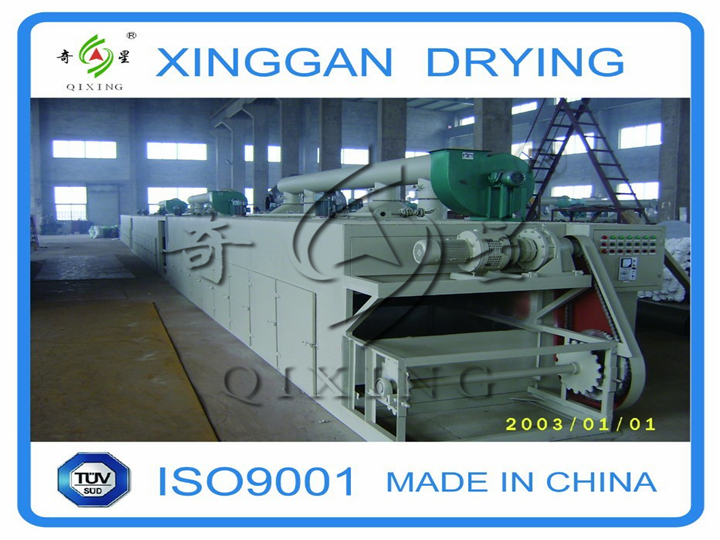

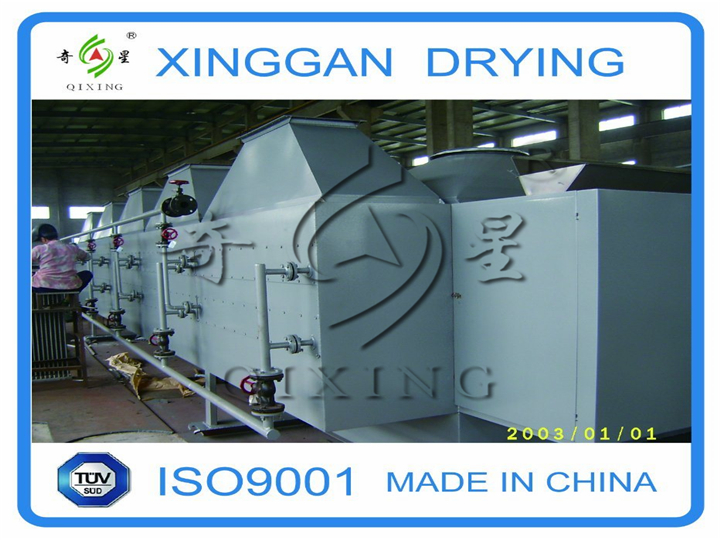

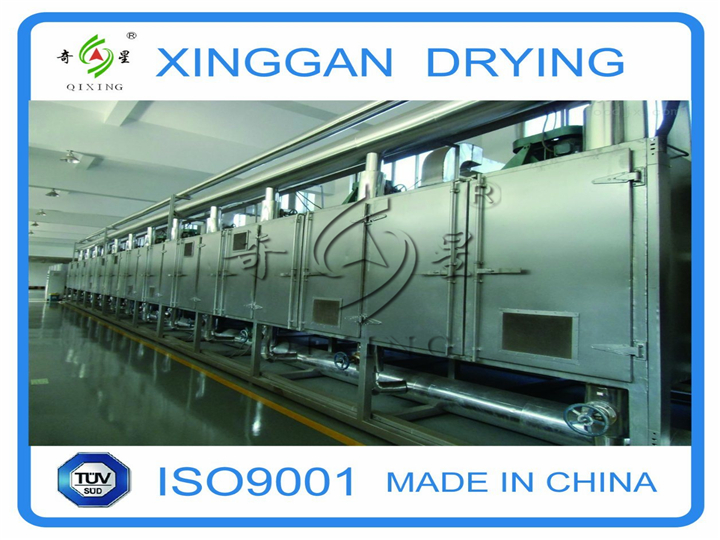

Belt Drying Equipment for Galic

Tags:
Overview: WORKING PRINCIPAL: The materials are put on the belt evenly by the feeder. Belt generally adopts 12-60 mesh stainless steel mesh, dragged by gear in the dryer. Dryer consists of several units, each unit with independent hot air circulation...
Detail Images
WORKING PRINCIPAL
The materials are put on the belt evenly by the feeder. Belt generally adopts 12-60 mesh stainless steel mesh, dragged by gear in the dryer. Dryer consists of several units, each unit with independent hot air circulation; some tail gas is discharged by specialized wet exhaust fan; exhaust is controlled by valve; hot air goes through screen covered with materials from bottom to top or from top to bottom, completes the process of heat and mass transfer and takes away moisture from materials. Belt moves slowly, with running speed freely adjusted according to the material temperature. After being dried, the finished products continuously fall into collector. Upper and lower circulation unit can be flexibly equipped according to user's needs, so is the number of units.

FEATURE
DW multilayer belt dryer is suitable for mass production of materials which is hard to dry with low drying rate. This equipment, with compact structure, less occupied area, simple operation, easy maintenance, stable operation, can be designed as different forms of hot air circulating drying according to the drying characteristics of different materials, thus become a extension and improvement of hot air circulation oven. It is widely used in fields of metallurgical additives, chemical, food, packaging and so on. With our technological progress and improving product technological contents, our multilayer belt dryer has possessed the ability for large-scale production, diversification, centralized control and continuous production, with the advantages of high efficiency, energy saving and easy management.
