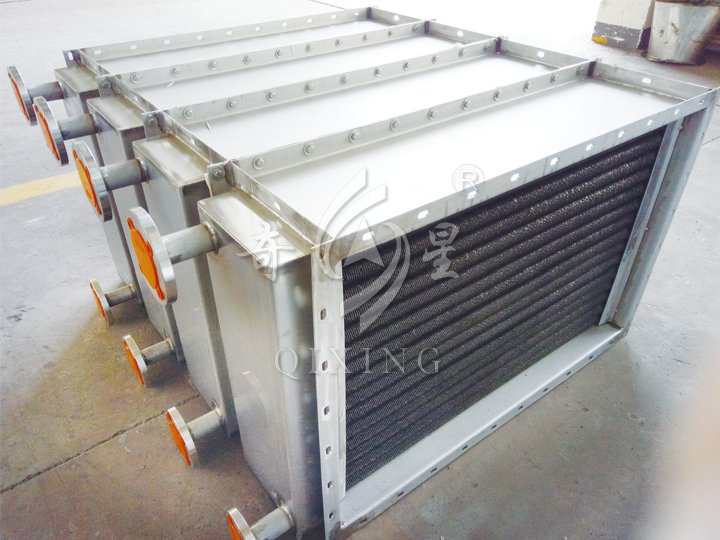

SRQ Series Heat Sinks
SRQ Series Heat Sinks
SRQ Series Heat Sinks
INTRODUCTION
Spiral heat-pipe exchanger produced by our company is also named as heat sinks, heat pipes. It is the main part of heat exchanger device which cools or heats the air through medium. The heat sinks are used in the projects like hot-air heating, air condition, cooling, and dehumidification and drying. It is capable of heating the air through steam or high-temperature water and of cooling the air through salt water or low-temperature water.
APPLICATION
The heat sink is capable of heating the air through steam or high-temperature water and of cooling the air through salt water or low-temperature water. It is well adopted in air condition system in some industries or fields like industrial and mining enterprises, light industry, papermaking, national defense cause, textile, electric power sector, dairy products, ceramics, hospitals and cinemas. It is constituted by spiral heat-pipe fins. There are also different models with different standards which could be chosen by users.
TECHNICAL PARAMETERS
Mobel / Material | Stainless steel | carbonaceous steel | Aluminum |
Tube Specification(mm) | Φ18×2 | Φ19×2 | - |
Diameter of Fins(mm) | Φ38 | Φ39 | - |
Thickness of finS(mm) | 0.24 | - | 0.4 |
Heat Exchange Coefficient (㎡/m) | - | 0.64 |
Specication of ns when the heat source is hot air
pipe diameterspecification | Φ63×3 |
diameter of fin(mm) | Φ103 |
thickness of fin(mm) | 1.5 |
factor of heat exchanging area(㎡/m) | 1.5 |
ATTENTION TO ORDER
◎ The heat sink could be used with other drying devices due to its various specifications and materials like aluminium alloy, stainless steel, galvanize d A3 steel, St-Al bimetallic plate, copper and aluminous wound spiral fin tubes rounding steel pipes. In addition, the heat sinks could also be used to heat or dehumidify indoor space or storerooms. Our company is able to design and produce products in accordance with users’demands.
◎ Models, name, clear length of tube, the number of tubes and rows should be told when you order.
◎ Special specifications and demands should be negotiated in advance when you order. The heat sink could be used with other drying devices due to its various specifications and materials like aluminium alloy, stainless steel, galvanize d A3 steel, St-Al bimetallic plate, copper and aluminous wound spiral fin tubes rounding steel pipes. In addition, the heat sinks could also be used to heat or dehumidify indoor space or storerooms. Our company is able to design and produce products in accordance with users’demands.
