ZKS、QVC Series Vacuum Feeder
ZKS、QVC Series Vacuum Feeder
Tags:
Class: Supporting Equipment Series
Overview: They all meet the GMP standard and enjoys the fast charging speed, long service life, convenient operation, cleanliness and safety.
Detail
Images
ZKS、QVC Series Vacuum Feeder
INTRODUCTION
They all meet the GMP standard and enjoys the fast charging speed, long service life, convenient operation, cleanliness and safety.
FEATURES
◎ It enjoys the fast charging speed.
◎ Continuous operation.
◎ No leaks, cleanliness and safety, compact structure, movability and convenient operation.
◎ It is suitable for cleaning the workshops.
◎ Fast-assembly hoop makes it easy to clean and dismount the equipment.
APPLICATION
◎ Suitable for powder, small particle (φ<5mm) and ball-shaped materials.
◎ Suitable for various sealed containers and devices like two-dimensional one, three-dimensional one, twin-cone one and V-shaped one in terms of charging.

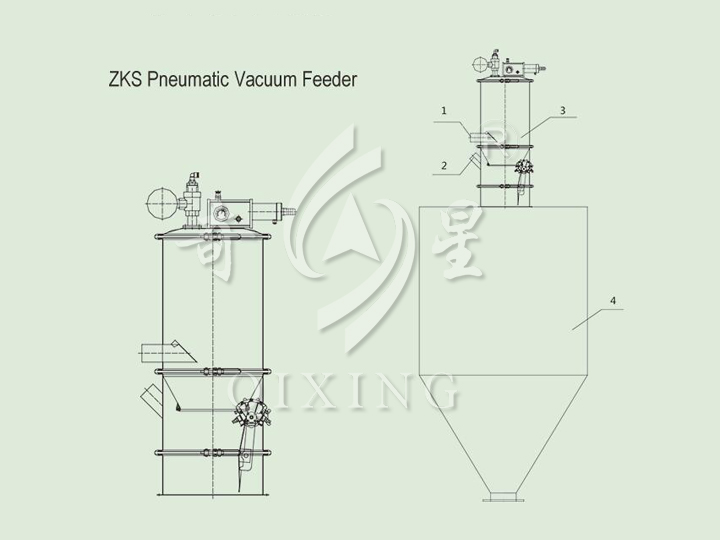

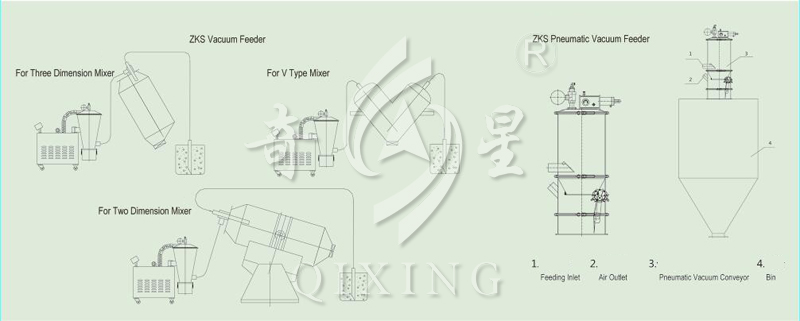

STRUCTURE SCHEMATIC
TECHNICAL PARAMETERS
ZKS Series Vacuum Feeder
|
Item\Model
|
ZKS-1
|
ZKS-2
|
ZKS-3
|
ZKS-4
|
ZKS-6
|
ZKS-7
|
ZKS-10-6
|
ZKS-20-6
|
|
Power(kw)
|
1.5
|
2.2
|
3
|
5.5
|
5.5
|
7.5
|
7.5
|
11
|
|
Delivery Capacity
|
400
|
600
|
1200
|
2500
|
3200
|
6000
|
6000 delivery distance:10m |
|
ZKS Series Pneumatic Vacuum Feeder
|
Item\Model
|
Unit
|
QVC-1
|
QVC-2
|
QVC-3
|
QVC-4
|
QVC-5
|
|
Delivery Amount
|
kg/h
|
＜18
|
＜20
|
＜22
|
＜28
|
＜31
|
|
Stock Volume
|
L
|
210
|
300
|
330
|
370
|
480
|
|
Working Pressure
|
Mpa
|
2.2
|
3.0
|
4.0
|
5.5
|
7.5
|
|
Compressed Consumption
|
NL/min
|
900-1200
|
1200-1500
|
1500-1800
|
1800-2100
|
2100-2400
|
-
ZKS、QVC Series Vacuum FEEDER
