MC Series Pulsed Jet Cloth Filter
INTRODUCTION
MC-II square pulsed jet cloth filter is improved and enhanced on the basis of the MC-I. For this reason, it not only possesses the advantages of MC-I like high efficiency of dust extraction, large air flow, stable property and convenient maintenance, but also enjoys some advantages that MC-I doesn’t have like good usage effect , no dust retention and wide range of APPLICATION. It is well used to extract dusts or powders in industries like grain, food, fodder, metallurgy, building materials and pharmacy.

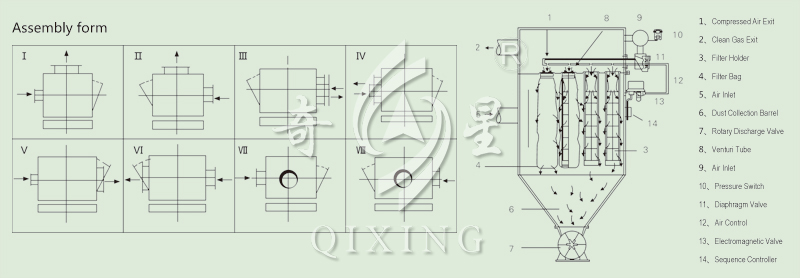

STRUCTURE SCHEMATIC
|
Item / Model |
Model |
MF48 |
MF60 |
MF72 |
MF84 |
MF96 |
MF108 |
MF120 |
|
Filter area |
㎡ |
36.2 |
45.2 |
54.3 |
63.3 |
72.4 |
81.4 |
90.5 |
|
Quantity of filter bag |
piece |
48 |
60 |
72 |
84 |
96 |
108 |
120 |
|
Filtered air amount |
m³/h |
6510-8680 |
8130-10840 |
9770-13000 |
11400-1520 |
13000-17370 |
14650-19530 |
16290-21700 |
|
Quantity of solenoid valve |
piece |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Power |
kw |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
2.2 |
2.2 |
|
Bag size |
mm |
120×2000 | ||||||
|
Speed of filter air |
m/min |
3-4 | ||||||
|
Ratio of air leakage |
% |
≤5 | ||||||
|
Pressure of praying and blowing |
MPa |
＞0.4-0.6 | ||||||
|
Resistance of equipment |
Pa |
＜1200 | ||||||
|
Efficiency of dust removing |
% |
≥99.9（filtering material can be selected as per the powder characteristics） | ||||||
-
