RLY Series Oil、Gas Hot Air Furnace

  • RLY Series Oil、Gas Hot Air Furnace

RLY Series Oil、Gas Hot Air Furnace

Tags:
Overview: The oil in RLY oil and gas hot air furnace could be burned through burner so as to produce high temperature gas.
Order
Detail Images

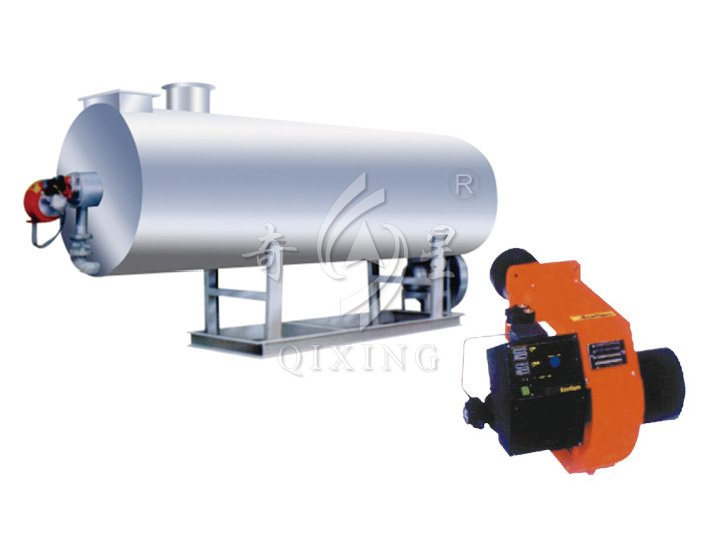

RLY Series Oil、Gas Hot Air Furnace


WORKING PRINCIPLE

The oil in RLY oil and gas hot air furnace could be burned through burner so as to produce high temperature gas. Gathering with the hot-blast stove equipped with strengthened heat transfer devices, RLY could transfer the heat of high temperature gas to the heated air and the high temperature gas whose heat emits and reduced to 250℃ will be exhausted into the atmosphere. The air needed to be heated will be sent into hot-blast stove through the optional air blower and be sent out through the hot air outlet after its temperature hitting the rated value. When the temperature of hot air hits the upper temperature limit, the burner will automatically stop burning or turn down the flame; when the temperature of hot air decreases to the lower temperature limit, the burner will automatically burn again or turn up the flame. The rate of raising the temperature could be adjusted through controlling air inlet valve.

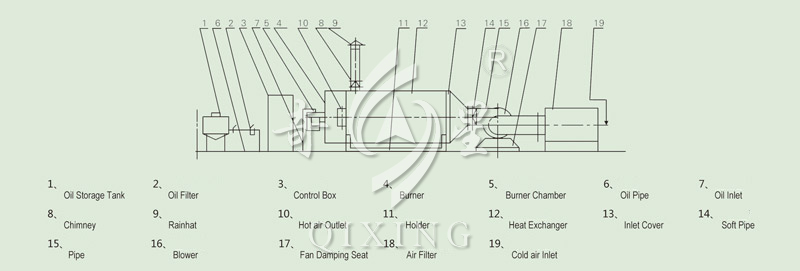

STRUCTURE SCHEMATIC


TECHNICAL PARAMETERS

Model / Item
Burner Model
Oil Consumption (kg/h)
Heat Output 104kcal/h
Overall Dimension (L×W×H)(mm)
Hot Air Outlet (L×W)(mm)

Total Weight (kg)

RLY1
RIELLO.G3/DL3FS
1.3-1.6
1
1200×1200×1600
Φ200
460
RLY4
RIELLO.G10/DL10FS
5-6.5
4
1700×1300×1600
Φ250
850
RLY10
RIELLO.G20/DL23FS
13-16
10
2300×1568×1870
Φ300
2200
RLY20
RIELLO 1G/DL34FS
26-32
20
2800×1568×1870
Φ400
2670
RLY30
RL50/DL55FT
39-48
30
3400×1568×1870
Φ450
3060
RLY40
RL70/DL75FT
52-64
40
4440×1768×2070
Φ550
5600
RLY60
RL100/DL100FT
78-96
60
5140×1868×2070
Φ600
8460
RLY100
PRESS 4G/DL 120FT
130-140
100
6440×2480×2300
550×600
12800
RLY160
P300/DL250FT
200-270
160
7470×2920×3480
750×900
15780
RLY200
P300/DL300FT
260-300
200
8175×2920×3480
750×900
18500
RLY360
G1510
480-620
360
9300×2920×3480
21000
