FS Series Quadrate Vibration Sifter
FS Series Quadrate Vibration Sifter
Tags:
Class: Sieving Series
Overview: FS quadrate vibration sifter is constituted by sieve and screen box equipped in discharge and feed holes, vibration source and vibration dampers.
Detail
Images

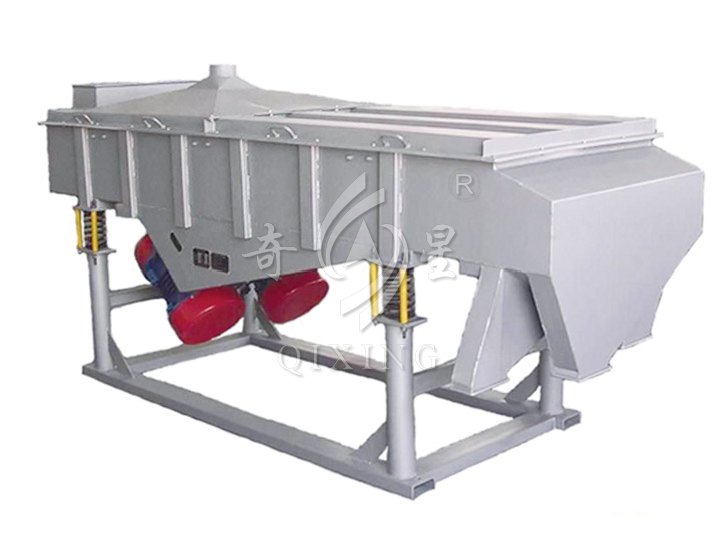

FS Series Quadrate Vibration Sifter
INTRODUCTION
FS quadrate vibration sifter is constituted by sieve and screen box equipped in discharge and feed holes, vibration source and vibration dampers. There are 4 to 6 vibration dampers made by soft rubber which connects the chassis and the screen box. Centrifugal force could be made when the machine is started. Eccentric block and vibration damper are respectively responsible for the amplitude so as to acquire the best working performance, which means that materials could experience a filtering process of vibration and comparative loosening. It is well used in sifting in industries like pharmacy, food, chemicals, metallurgy, and electronics.
TECHNICAL PARAMETERS
|
Item Model |
Production Capacity （kg/h） |
Mesh Number (mesh) |
Motor Power (kw/h) |
Vibration Frequency (r/min) |
Exciting Force (KN) |
Height of Upper Outlet |
Height of Lower Outlet |
Height of Lower Exit |
Overall Dimension (L×W×H)(mm) |
Net Weight (kg) |
|
FS-0.5M2-X |
450 |
2-150 |
0.2×2 |
1400 |
0-2.5×2 |
800 |
680 |
500 |
1300×770 ×1060 |
220 |
|
FS-0.7M2-X |
650 |
2-150 |
0.2×2 |
1400 |
0-2.5×2 |
850 |
750 |
530 |
1700×680 ×1100 |
280 |
|
FS-0.8M2-X |
750 |
2-150 |
0.2×2 |
1400 |
0-2.5×2 |
850 |
750 |
530 |
1600×830 ×1150 |
320 |
|
FS-1.2M2-X |
1100 |
2-150 |
0.2×2 |
960 |
0-5×2 |
880 |
760 |
520 |
1900×980 ×1220 |
450 |
-
FS Quadrate Vibration Sifter
Null...
Next: Null
News
- 2018-05-11 > Tow CT-C Hot Air Circulation Ovens Manufactured by Our Company Were Exported to Bangladesh
- 2018-04-25 > 2018 (Spring) China International Pharmaceutical Machinery Exposition
- 2018-02-23 > New Year Begins a New Journey
- 2017-10-04 > 2017(Autumn) Professional Pharmaceutical Machinery Exhibition in China
- 2017-06-24 > Xinggan Drying Successfully Participated in the 17th Pharmaceutical Raw Materials Exhibition
- 2017-04-22 > 2017(Spring) Professional Pharmaceutical Machinery Exhibition in Qingdao
Products
-
FS Series Quadrate Vibration Sifter -

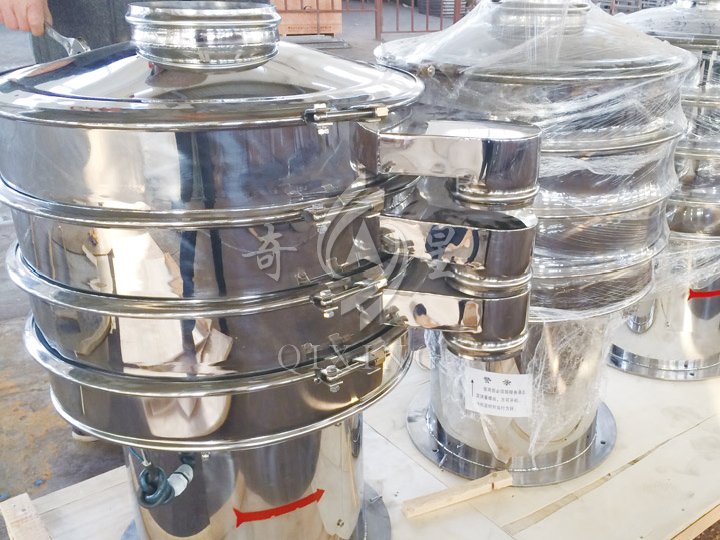

ZS Series Round Vibration Sifter
