FG Series Fluid Bed Dryer

  • FG Series Fluid Bed Dryer
  • FG Series Fluid Bed Dryer
  • FG Series Fluid Bed Dryer
  • FG Series Fluid Bed Dryer
  • FG Series Fluid Bed Dryer
  • FG Series Fluid Bed Dryer

FG Series Fluid Bed Dryer

Tags:
Class: Dryer Series
Overview: FG Series Fluid Bed DryerAPPLICAITONFG Fluid-bed Dryer can be used in drying powder or granule material in pharmaceutical, food, chemical, and pesticide industries.FEATURES◎ This machine belongs to fluidizing drying, the heat mass is transferred quickly. …
Order
Detail Images

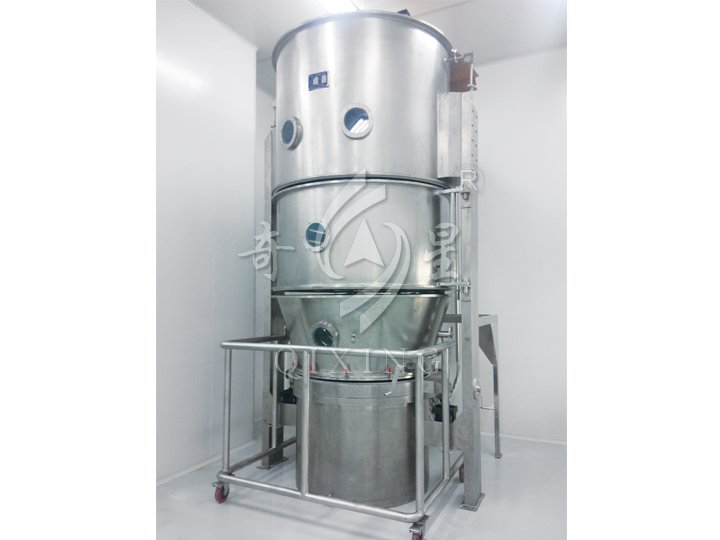

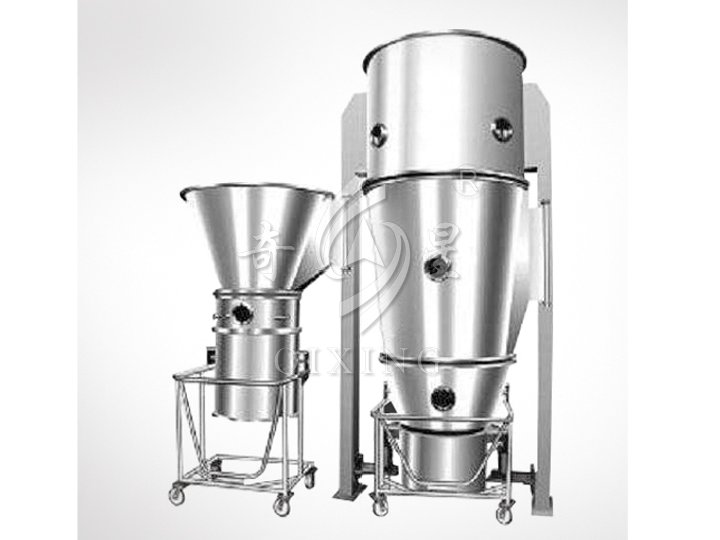

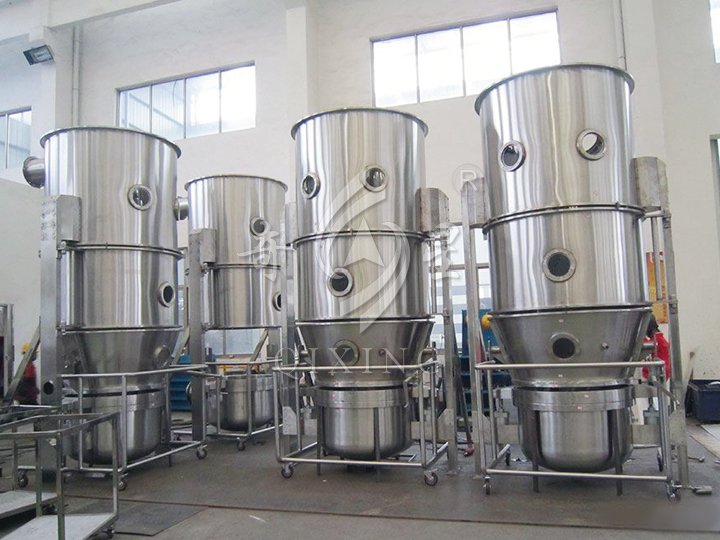

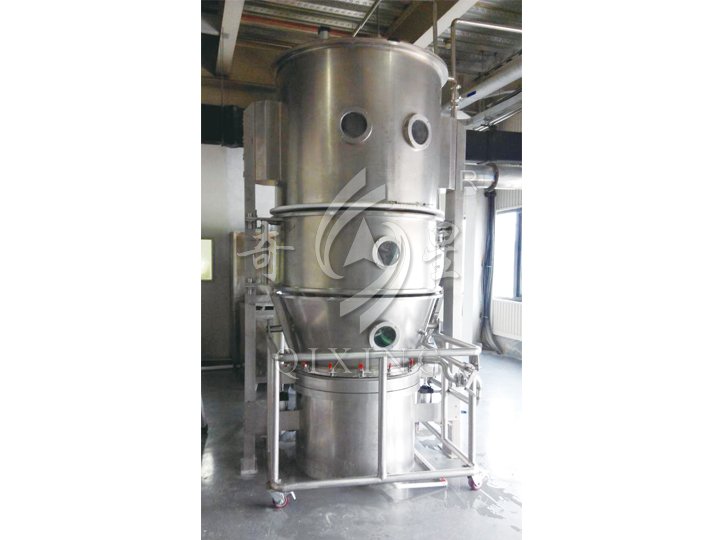

FG Series Fluid Bed Dryer


APPLICAITON

FG Fluid-bed Dryer can be used in drying powder or granule material in pharmaceutical, food, chemical, and pesticide industries.


FEATURES

◎ This machine belongs to fluidizing drying, the heat   mass is transferred quickly. It has a larger fluidizing space than GFG.
◎ Because operation is done in negative pressure condition. There is no powder or dust flying in system.
◎ Outlet air filter is multi-bag type and made of anti-static material. Operation is safe.
◎ No dead corner, easy to clean.
◎ Stirring device can be added based on special requirement.
◎ High configuration can be selected: negative feeding system and PLC control system.



PROCESS FLOW STRUCTURE SCHEMATIC


TECHNICAL PARAMETERS

Model/Item FG-3 FG-5 FG-15 FG-30 FG-45 FG-60 FG-90 FG-120 FG-150 FG-200 FG-300 FG-500
Capacity 12 22 45 100 155 220 300 420 530 660 1000 1500
Handling Capactiy 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of Fan 2.2 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37
Steam Consumption 12 23 42 70 99 141 169 211 251 282 366 451
Consumption
of Compressed Air
0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise ( isolation installment of fan )≤75

Overall Dimension

Length 1.0 1.2 1.25 1.6 1.65 1.85 1.85 2.2 2.27 2.34 2.8 3
With 0.55 0.6 0.9 0.9 1.1 1.25 1.25 1.65 1.72 1.9 1.9 2.55
Height 1.8 2.1 2.1 2.3 2.4 3 3 3.1 3.1 3.5 3.8 4.2

Notes: FG series of equipments are without granulation function.
