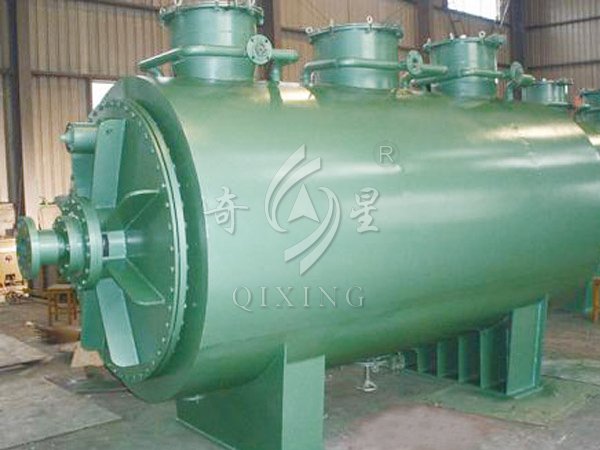

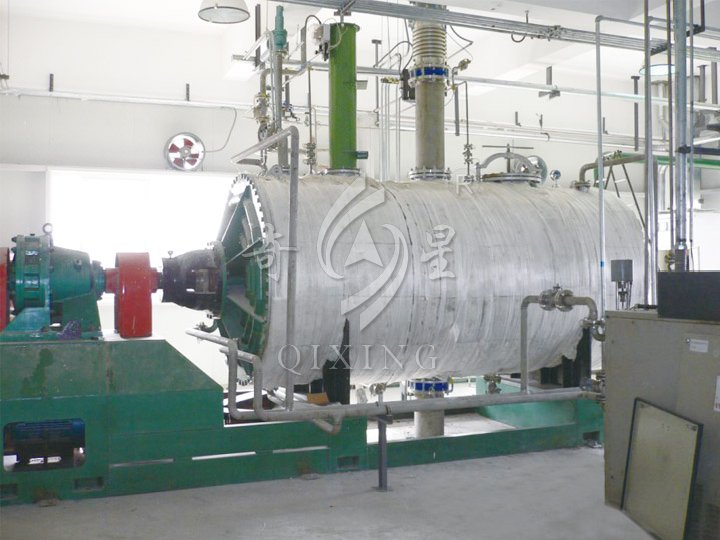

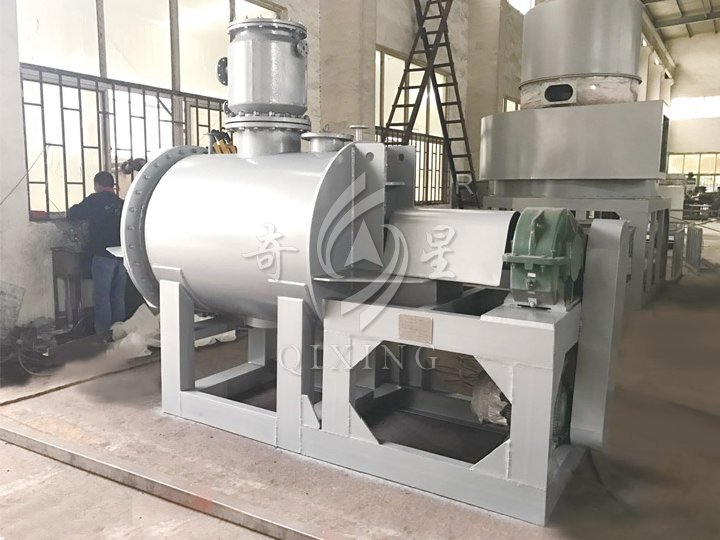

ZPG Series Vacuum Rake Dryer


INTRODUCTION

ZPG vacuum rake dryer uses large areas of layers to do heat, thus enable large heat transfer area and high thermal efficiency. Stirring is set so that the materials in the barrel form a state of continuous circulation, further improving the uniformity of the material being heated, allowing smooth drying of pasty, creamy and mushy materials.


WORKING PRINCIPLE

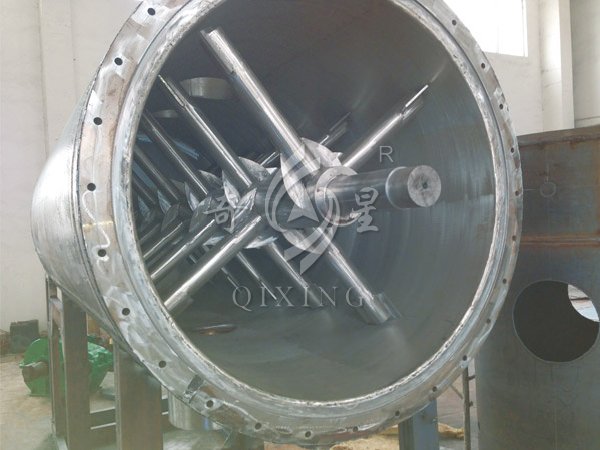

ZPG vacuum rake dryer is a new kind of horizontal batch vacuum drying equipment. The wet materials experience conduction and evaporation. Blade stirrer continuously removes materials from hot surface, and develops a recycle stream in the container. After evaporation, the water is withdrawn from the vacuum pump.


FEATURES

◎ This machine uses large areas of layers to do heat, thus enable large heat transfer area and high thermal efficiency.
◎ Stirring is set so that the materials in the barrel form a state of continuous circulation, further improving the uniformity of the material being heated.
◎ Stirring is set, allowing smooth drying of pasty, creamy and mushy materials.


APPLICAITON

◎ In industries of medicine, food and chemical, it is used to dry following materials.
◎ Applied in pasty and powdery materials.
◎ Heat-sensitive materials requiring low-temperature drying.
◎ Easily oxidized, explosive, strong-irritant and highly-toxic materials.


STRUCTURE SCHEMATIC



TECHNICAL PARAMETERS


Item\Model

ZPG-500

ZPG-750

ZPG-1000

ZPG-1500

ZPG-2000

ZPG-3000

Working Volume (L)

300

450

600

900

1200

1800

Heating Area (m2)

6

7.6

9.3

12.3

14.6

19.3

Stirring Revolution (rpm)

6-30 stepless speed regulation

Power (kw)

4

5.5

5.5

7.5

11

15

Design pressure of Jacket (hot water))

≤0.3

Vacuum Degree(inside cylinder)

-0.09~0.096

Note: The evaporated amount of water is related to the characteristics of raw materials and the temperature of inlet air and outlet air. When the temperature of the outlet air is 90℃, the water evaporated curve is listed in above table (for reference only). If the product have been improved or updated by new technology, the related parameters will be changed accordingly.
