GFG Series High-Efficiency Fluidized Dryer

  • GFG Series High-Efficiency Fluidized Dryer

GFG Series High-Efficiency Fluidized Dryer

Tags:
Class: Dryer Series
Overview: GFG Series High-Efficiency Fluidized Dryer WORKING PRINCIPLE The air, after being heated and purified, is immited from the bottom by induced draft fan and passed through the screen plate of hopper. In the workshop, fluidization is formed through mixing and…
Order
Detail Images

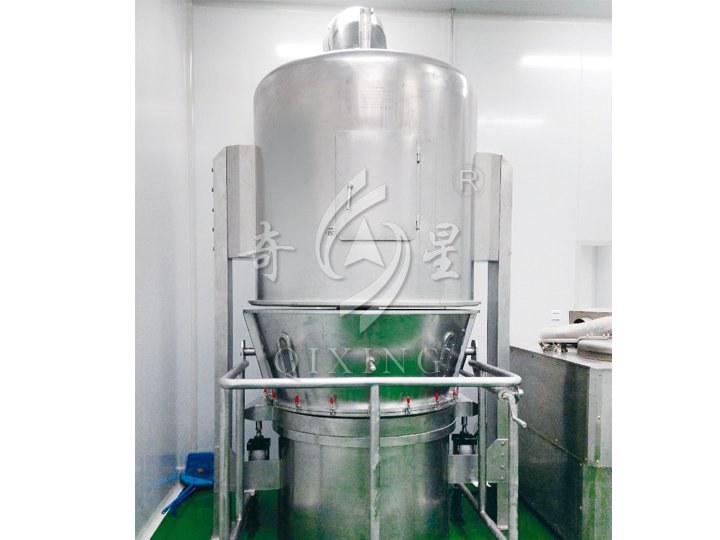

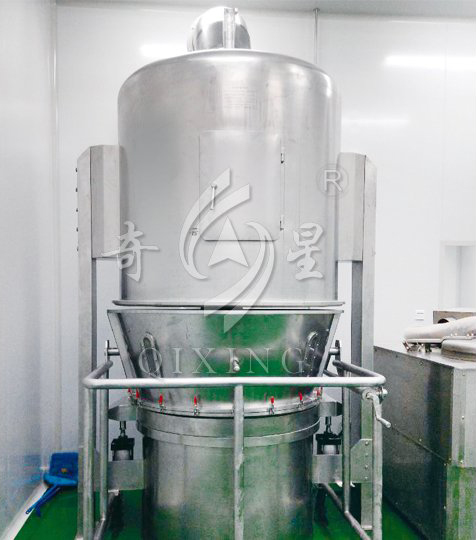

GFG Series High-Efficiency Fluidized Dryer


WORKING PRINCIPLE

The air, after being heated and purified, is immited from the bottom by induced draft fan and passed through the screen plate of hopper. In the workshop, fluidization is formed through mixing and negative pressure. The moisture is evaporated and removed fast, thus the materials can achieve rapid drying.


FEATURES

◎ Fluidized bed is designed in round structure to avoid dead ends.
◎ In the bed there is stirrer. It avoids agglomeration of damp material and forming channel flow during drying.
◎ It uses tipping unit to discharge granule, which is convenient, fast and thorough. It can also design automatic feeding and discharging  system as required.
◎ Sealed negative-pressure operation. Air filtered. Easy operation and cleaning.
◎ Fast drying speed and uniform drying temperature. Drying time is generally 20-30 minutes for each batch, depending on the material.


APPLICAITON

◎ Mechanism screw extrusion particles, rock particles, high-speed mixed granulation particles.
◎ Drying of wet granules and powdered materials in medicine, food, forage, chemical and other fields.
◎ Large particles, small lumps, sticky granular and lump materials.
◎ Materials whose volume will change after drying such as konjak.

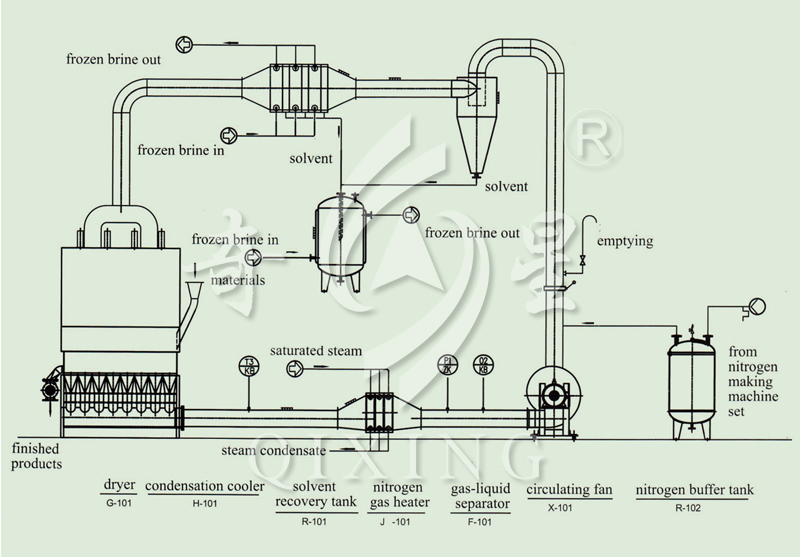

PROCESS FLOW STRUCTURE SCHEMATIC



TECHNICAL PARAMETERS


Model/Item GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of Hopper (L) 200 300 400 500 650 800 1000
Production Capacity (kg/ batch) 30~60 50~100 60~120 70~150 100~200 120~250 150~300
Inet Temperature (℃) 500~100
Fan Air Amount (m³/h) 2576 3488 3619 5114 5153 6032 7185 7766
Air Pressure (pa) 5639 5080 7109 5869 9055 7610 7400 7218
Motor Power (KW) 7.5 11 11 15 18.5 22 22 30
Agitator Speed (r/min) 11 11 11 11 11 11 11
Motor Power (KW) 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure (Mpa) 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption (m³/h) 104 170 210 240 230 280 280
Compressed Air Pressure (Mpa) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption (m³/h) 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of Main Engine (kg) 1000 1200 1450 1500 1700 2000 2200
