DW Series Monolayer、Multilayer Belt Dryer


INTRODUCTION

DW monolayer belt dryer is a kind of continuous through-flow drying equipment, for drying of sheet, strip and granular materials in good permeability, especially suitable for those materials with high moisture content but allowing no high drying temperature, such as dehydrated vegetables and Chinese medicine decoction pieces. This series of dryer has such advantages: fast drying speed, high evaporation intensity and good product quality. It can also dry paste cake-shape materials after they are processed into granules or rod.


WORKING PRINCIPLE

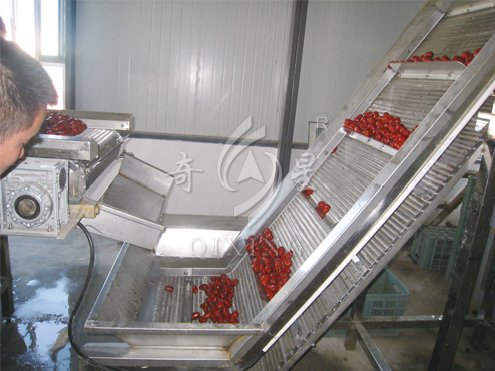

The materials are put on the belt evenly by the feeder. Belt generally adopts 12-60 mesh stainless steel mesh, dragged by gear in the dryer. Dryer consists of several units, each unit with independent hot air circulation; some tail gas is discharged by specialized wet exhaust fan; exhaust is controlled by valve; hot air goes through screen covered with materials from bottom to top or from top to bottom, completes the process of heat and mass transfer and takes away moisture from materials. Belt moves slowly, with running speed freely adjusted according to the material temperature. After being dried, the finished products continuously fall into collector. Upper and lower circulation unit can be flexibly equipped according to user’s needs, so is the number of units.


FEATURES

◎ You can adjust the amount of air, heating temperature, residence time and feeding speed to achieve the best drying results.
◎ Configuration of equipment is flexible; you can use network flushing system and material cooling system.
◎ Most air is cyclic utilization, highly saving energy.
◎ Unique air distribution devices make a more uniform hot air distribution, to ensure the consistency of product quality.
◎ Heating source can be steam, conduction oil, electricity or supported coal-fired (oil) hot blast heater.


APPLICAITON

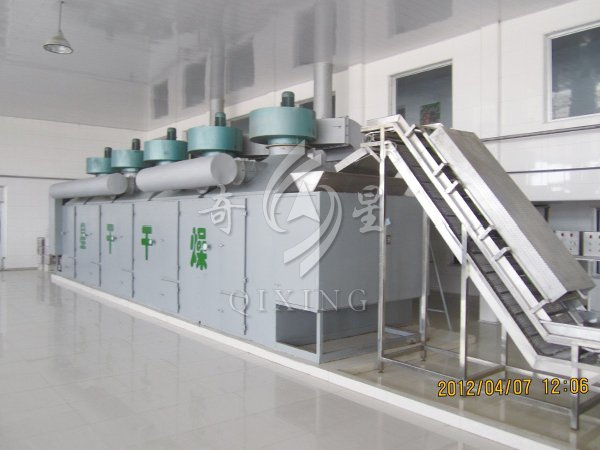

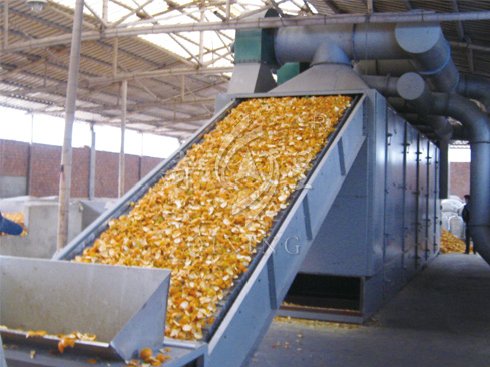

Dehydrated vegetables, granule feedstuff, monosodium glutamate, coconut, organic pigments, synthetic rubber, synthetic fiber, medicines, crude drugs, small wooden products, plastic products, electronic devices without aging and curing.

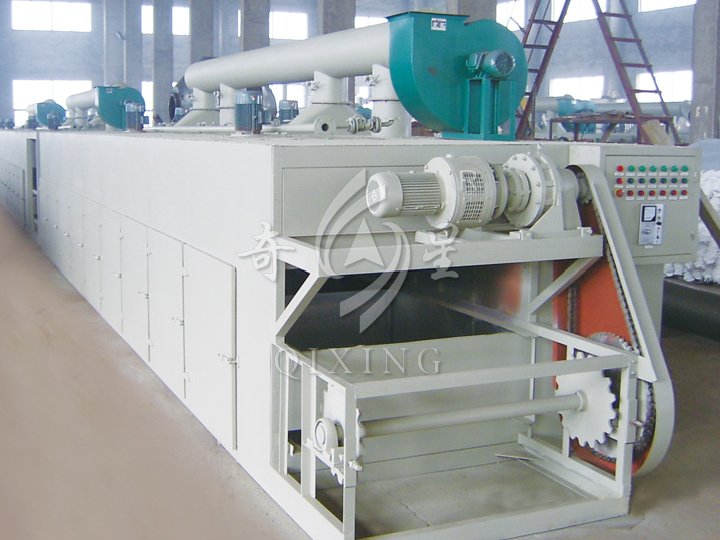

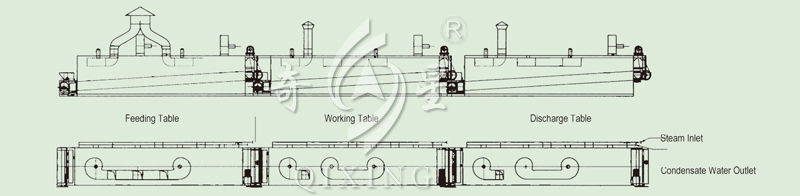

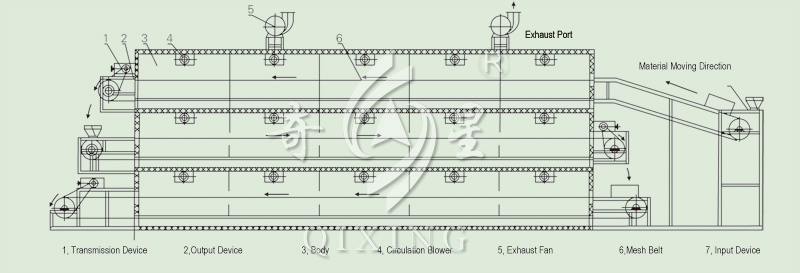

STRUCTURE SCHEMATIC




TECHNICAL PARAMETERS

Monolayer Belt Dryer

                           Model

Item

DW-1.2-8

DW-1.2-10

DW-1.6-8

DW-1.6-10

DW-2-8

DW-2-10

DW-2-20

Drying Unit(Qty)

4

5

4

5

4

5

10

Mesh Belt(m)

1.2

1.6

2

Drying Length(m)

8

10

8

10

8

10

20

Material Thickness(mm)

10-80

Drying Temperature (oC)

50-140

Steam Pressure(MPa)

0.2-0.8

Steam Consumption (kg/h)

120-300

150-375

150-400

180-500

180-500

225-600

450-1200

Drying Time (h)

0.2-1.2

1.25-1.5

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.5-3

Evaporation Capacity

(kg/H2O/h)

60-160

80-200

85-220

100-260

100-260

120-300

240-600

Total Power (kw)

11.4

13.6

14.6

18.7

19.7

24.5

51

Overall Dimensions

9.56x1.49x2.3

11.56x1.49x2.3

9.56x1.9x2.4

11.56x1.9x2.4

9.56x2.32x2.5

11.56x2.32x2.5

21.56x2.32x2.5

Total Weight (kg)

4500

5600

5300

6400

6200

7500

14000




Multilayer Belt Dryer

   Model

Item

DDW3-1.2-8

DDW3-1.2-10

DDW3-1.6-8

DDW3-1.6-10

DDW3-2-8

DDW3-2-10

Mesh Belt(m)

1.2

1.6

2

Drying Length(m)

8

10

8

10

8

10

Material Thickness(mm)

10~50

Drying Temperature (oC)

50~120

Steam Pressure(MPa)

0.2~0.5

Water Evaporation

(kg/h)

80~220

100~320

90~300

120~380

130~400

180~500

Steam Consumption (kg/h)

≤2kg steam evaporates1kg water(for vegetables and Chinese herbal)

Total Power (kw)

21.2

21.2

21.2

22.7

22.7

22.7

Overall Dimensions

11×1.6×2

12.5×1.6×2

11×2.0×2

12.5×2.0×2

11×2.4×2

12.5×2.4×2

Total Weight (kg)

3000

4000

4400

4550

4300

6000


Notes: Calculation of water evaporation depends on drying temperature, material thickness and retention time.
