ZLG Series Vibrating Fluid-Bed Dryer
ZLG Series Vibrating Fluid-Bed Dryer
Tags:
Class: Dryer Series
Overview: The working principle of fluid-bed dryer is that materials go into the machine from feed inlet. Under the vibratory force, the materials are thrown along the horizontal fluid bed and move forward continuously.
Detail
Images
ZLG Series Vibrating Fluid-Bed Dryer
INTRODUCTION
The working principle of fluid-bed dryer is that materials go into the machine from feed inlet. Under the vibratory force, the materials are thrown along the horizontal fluid bed and move forward continuously. After the hot air goes upward through the fluidized bed and a heat exchange with wet materials, the wet air is dedusted by cyclone separator and then discharged from air exhaust in 1:3.
APPLICAITON
This machine is applicable for drying and cooling powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, mineral and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, distillers grains, seeds, slag, sugar and so on.
FEATURES
◎ Vibration source is driven by vibration motor, smooth operation, easy maintenance, low noise, long life.
◎ Fluidized symmetry, no dead gaps and broken phenomenon, which enable uniform dried and cooled products
◎ Adjustable, wide scope of application. Material thickness, speed of movement within the machine and total amplitude can all achieve stepless adjustment.
◎ Small damage to the surface of the material, available for drying of friable material, when irregular particles will not affect work results.
◎ Totally enclosed structure, effectively preventing cross infection between the material and the air. Clean working environment.
◎ High mechanical efficiency and thermal efficiency, perfect energy-saving effect, about more 30 %—60 % energy than average drying device .with 30 %—60 % energy saved comparing with average drying devices.
TECHNICAL PARAMETERS
TECHNICAL PARAMETERS
|

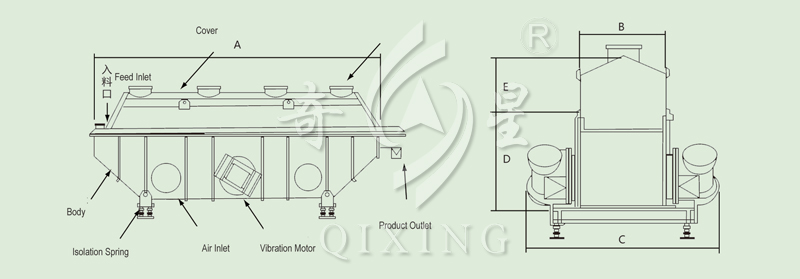

Item / Model |
A |
B |
C |
D |
E |
F |
Weight(kg) |
|
GZQ3×0.30 |
3000 |
300 |
1350 |
900 |
430 |
1650 |
1250 |
|
GZQ4.5×0.30 |
4500 |
300 |
1350 |
900 |
430 |
1650 |
1250 |
|
GZQ4.5×0.45 |
4500 |
450 |
1550 |
950 |
430 |
1700 |
1670 |
|
GZQ4.5×0.60 |
4500 |
600 |
1650 |
950 |
430 |
1700 |
1670 |
|
GZQ6×0.45 |
6000 |
450 |
1650 |
950 |
430 |
1700 |
2100 |
|
GZQ6×0.60 |
6000 |
600 |
1700 |
1000 |
500 |
1700 |
2410 |
|
GZQ6×0.75 |
6000 |
750 |
1850 |
1000 |
600 |
1850 |
2840 |
|
GZQ6×0.9 |
6000 |
900 |
2000 |
1000 |
600 |
1850 |
3160 |
|
GZQ7.5×0.60 |
7500 |
600 |
1850 |
1000 |
600 |
1850 |
3200 |
|
GZQ7.5×0.75 |
7500 |
750 |
2000 |
1000 |
600 |
1850 |
3600 |
|
GZQ7.5×0.9 |
7500 |
900 |
2100 |
1000 |
600 |
1850 |
4140 |
|
GZQ7.5×1.2 |
7500 |
1200 |
2500 |
1150 |
800 |
2050 |
5190 |
|
Item / Model |
Area of Fluidized Bed |
Inlet Air
Temperature |
Outlet Air
Temperature |
Water Evaporation
Capacity |
Vibration Motor |
|
|
Model |
Power(kw) |
|||||
|
GZQ3×0.30 |
0.9 |
70-140 |
40-70 |
20-35 |
ZDS31-6 |
0.8×2 |
|
GZQ4.5×0.30 |
1.35 |
70-140 |
40-70 |
35-50 |
ZDS31-6 |
0.8×2 |
|
GZQ4.5×0.45 |
2.025 |
70-140 |
40-70 |
50-70 |
ZDS32-6 |
1.1×2 |
|
GZQ4.5×0.60 |
2.7 |
70-140 |
40-70 |
70-90 |
ZDS32-6 |
1.1×2 |
|
GZQ6×0.45 |
2.7 |
70-140 |
40-70 |
80-100 |
ZDS41-6 |
1.5×2 |
|
GZQ6×0.60 |
3.6 |
70-140 |
40-70 |
100-130 |
ZDS41-6 |
1.5×2 |
|
GZQ6×0.75 |
4.5 |
70-140 |
40-70 |
120-140 |
ZDS42-6 |
2.2×2 |
|
GZQ6×0.9 |
5.4 |
70-140 |
40-70 |
140-170 |
ZDS42-6 |
2.2×2 |
|
GZQ7.5×0.60 |
4.5 |
70-140 |
40-70 |
130-150 |
ZDS42-6 |
2.2×2 |
|
GZQ7.5×0.75 |
5.625 |
70-140 |
40-70 |
150-180 |
ZDS51-6 |
3.0×2 |
|
GZQ7.5×0.9 |
6.75 |
70-140 |
40-70 |
160-210 |
ZDS51-6 |
3.0×2 |
|
GZQ7.5×1.2 |
9 |
70-140 |
40-70 |
200-260 |
ZDS51-6 |
3.0×2 |
Notes: The water evaporation capacity listed in above table is max. water evaporation capacity.
-
ZLG Series Vibrating Fluid-Bed Dryer -
ZLG Series Vibrating Fluid-Bed Dryer -
ZLG Series Vibrating Fluid-Bed Dryer -
ZLG Series Vibrating Fluid-Bed Dryer
