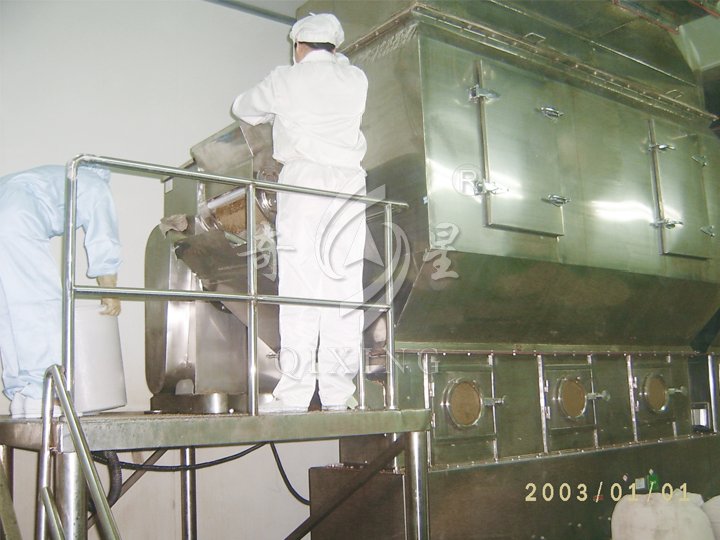

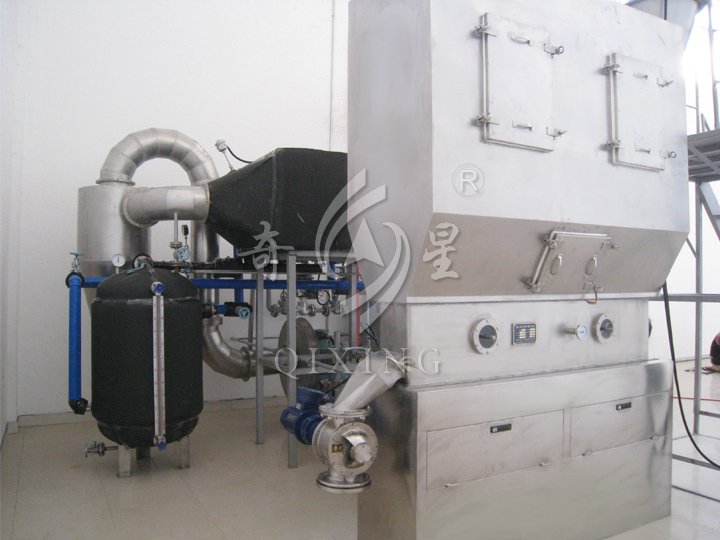

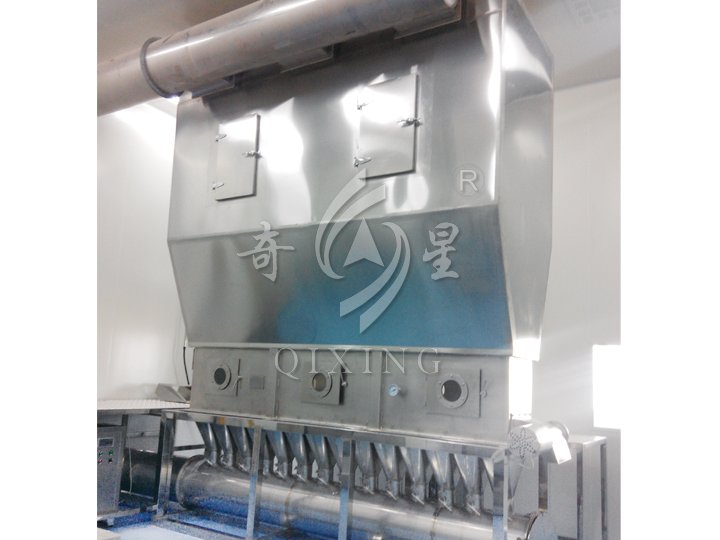

XF Series Horizontal Fluidized Dryer


INTRODUCTION

Fluidized drying, also known as fluidized bed, consists of air filter, heater, fluidized bed, cyclone separator, bag-type dust collector, high-pressure centrifugal fan and operation table. Due to the different nature of the dried materials, equipped dedusters may be considered according to different needs: you can choose both of cyclone separator, bag-type dust collector or either one of them.


WORKING PRINCIPLE

Clean hot air goes into the bed distributed through valve plate; wet materials from feeder go into boiling under hot wind. The wide contact between hot air and the materials enhanced heat and mass transfer process so it can be dried in a relatively short period of time. If continuously, materials enter from one end of the bed and, after fluidized drying for tens seconds to a few minutes, automatically flows out from the other end of the bed. This equipment is generally operated at negative pressure.

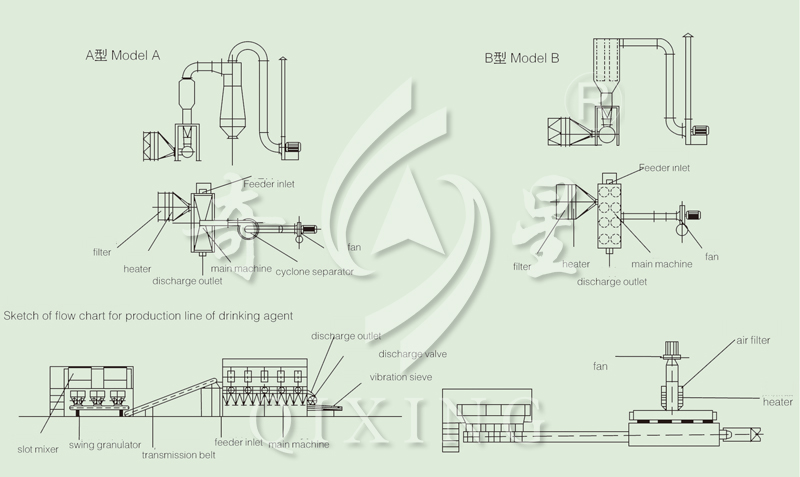

STRUCTURE SCHEMATIC


APPLICAITON

Drying operation of medicines, chemical raw materials, food, food processing and forage. Such as: drying raw material medicine, tablet granules, electuary of Chinese medicine, health food, beverage powder, corn germ, forage, Plastic resin, citric acid and other powder materials. Particle size of applicaition is generally 0.1 ~ 6mm, and the optimum size is 0.5 ~ 3mm.


TECHNICAL PARAMETERS

Model/Item

Area of Bed Layer

(㎡)

Drying Capacity

(kg H₂O/h)

Fan Power(kw)

Inlet Air Temperature

(℃)

Material Temperature

(℃)

Overall Dimension (Dryer Body)

L×W×H(m)

Occupied Area (㎡)
XF0.25-1(XF10) 0.25 10-15 5.5 120-140 40-60 1×0.6×3.35 18
XF0.25-2(XF20) 0.5 20-25 7.5 120-140 40-60 2×0.6×3.35 25
XF0.25-3(XF30) 1.0 30-45 15 120-140 40-60 4×0.6×3.35 35
XF0.25-6 1.5 52-75 22 120-140 40-60 6×0.6×3.35 40
XF0.3-2 0.6 24-30 7.5 120-140 40-60 2×0.7×3.4 25
XF0.3-4 1.2 42-60 18.5 120-140 40-60 4×0.7×3.4 38
XF0.3-6 1.8 63-90 30 120-140 40-60 6×0.7×3.4 45
XF0.3-8 2.4 84-120 37 120-140 40-60 8×0.7×3.4 56
XF0.3-10 3.0 105-150 48 120-140 40-60 10×0.7×3.4 70
XF0.4-4 1.6 56-80 30 120-140 40-60 4×1×3.58 18
XF0.4-6 2.4 84 37 120-140 40-60 6×1×3.58 56
XF0.4-8 3.2 112-160 44 120-140 40-60 8×1×3.58 74
XF0.4-10 4.0 140-200 66 120-140 40-60 10×1×3.58 82
XF0.4-12 4.8 168-240 66 120-140 40-60 12×1.2×4.1 96
XF0.5-4(XF50) 2.0 70-100 30 120-140 40-60 4×1.2×4.1 50
XF0.5-6 3.0 140-200 66 120-140 40-60 6×1.2×4.1 70
XF0.5-8 4.0 140-200 66 120-140 40-60 8×1.2×4.1 82
XF0.5-10 5.0 175-250 90 120-140 40-60 8×1.2×4.1 100
XF0.5-12 6.0 210-300 90 120-140 40-60 12×1.2×4.1 140
XF0.5-14 7.0 245-350 150 120-140 40-60 14×1.2×4.1 180
XF0.5-16 8.0 280-400 150 120-140 40-60 16×1.2×4.1 225
XF0.5-18 9.0 315-450 150 120-140 40-60 18×1.2×4.1 268

Note: Feeding Mode: 1. Star feeding; Star feeding with pneumatic conveying. 2. Automated production can be realized. 3. Customized design as per user requirements. 4. The fan power depends on the material types.
