ZLPG Series Chinese Medicine Extractum Spray Dryer

  • ZLPG Series Chinese Medicine Extractum Spray Dryer
  • ZLPG Series Chinese Medicine Extractum Spray Dryer
  • ZLPG Series Chinese Medicine Extractum Spray Dryer

ZLPG Series Chinese Medicine Extractum Spray Dryer

Tags:
Class: Dryer Series
Overview: ZLPG Series Chinese Medicine Extractum Spray Dryer NTRODUCTION Chinese medicine extractum high-speed centrifugal spray device is an application of centrifugal spray drying technology in particular material. It is also a drying equipment that uses high-spee…
Order

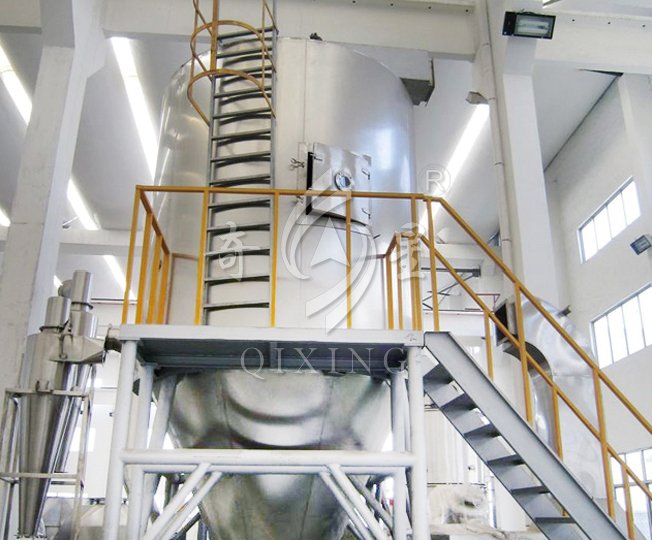

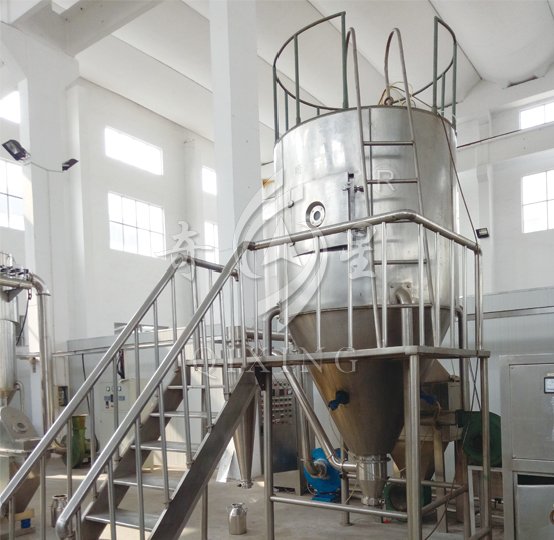

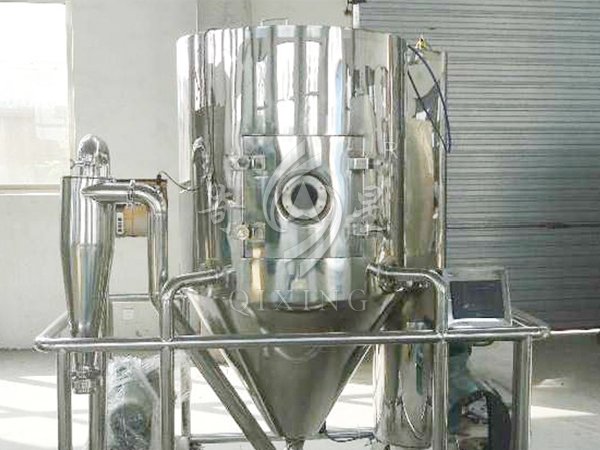

Detail Images

ZLPG Series Chinese Medicine Extractum Spray Dryer


NTRODUCTION

Chinese medicine extractum high-speed centrifugal spray device is an application of centrifugal spray drying technology in particular material. It is also a drying equipment that uses high-speed centrifugal atomization to make materials dispersed into a mist, and have full access to hot air to achieve instant drying and produce powder products. It is designed to solve medicine extractum and plant liquid.


WORKING PRINCIPLE

This machine is fully enclosed and all parts are made of stainless steel, with three-level purification devices, which make filtered air reach the class 100,000 requirement. There is cold-wall devices equipped on the cylinder and its top to keep the wall temperature under 80℃. The drying tower is equipped with air-brush weeping device; coking and deterioration phenomenon won’t occur to Chinese medicine extractum powder dried by this machine. It greatly increases the yield rate of powder (95%), without the phenomena of medicine mixing and sticky wall.Chinese medicine extractum high-speed centrifugal spray device is application of centrifugal spray drying technology in particular material. It is also drying equipment that uses high-speed centrifugal atomization to make materials dispersed into a mist, and have full access to hot air to achieve instant drying and produce powder products.


FEATURES

◎ The tower is equipped with cold-wind jackets.
◎ The tower is equipped with automatic vibration devices.
◎ The tower and piping are equipped with quick opening cleaning hole and drain hole.
◎ It can be equipped with automatic-control thermostat feed pot.
◎ It can be equipped with manual high-pressure washing-tower standard accessories.
◎ Portion in contact with material were made of stainless steel; (or all stainless steel);
◎ Material collection use two-level cyclone dedusting device or one-level cyclone and wet deduster.
◎ Inlet air temperature can realize automatic control and continuous apparatus.
◎ It can be equipped with gas cleaning device.

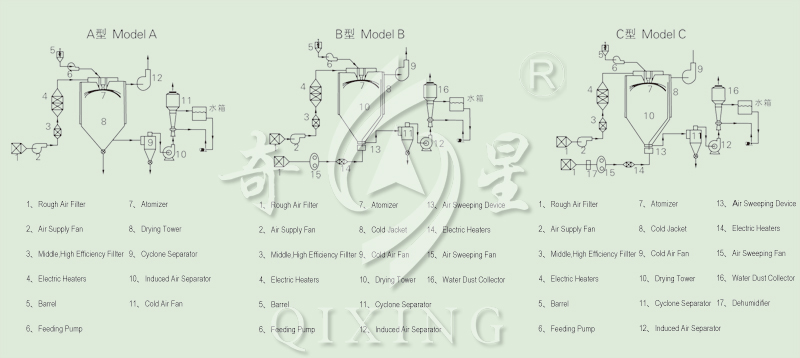

STRUCTURE SCHEMATIC



TECHNICAL PARAMETERS

Model/Item

ZLPG-15

ZLPG-20

ZLPG-25

ZLPG-32

ZLPG-38

ZLPG-40

ZLPG-47

ZLPG-52

ZLPG-58

Max. Evaporation   Capacity
  (kg/h)

5

10

25

50

80

100

150

200

300

Processing   Capacity(kg/h)

6-7

12-14

25-34

50-68

80-108

100-135

150-203

200-270

300-406

Output   Capacity (kg/h)

1-2

2-4

4.8-7.2

9.2-14

14.8-22.4

18.4-28

28-42

36.8-56.4

55-85

Solid Content   of Damp Material (%)

18-25

Moisture   Content of Finished Product (%)

3-5

Power(kw)

36

45

63

99

132

153

204

246

330

Heat Source

Steam +   electricity

Product   Collecting Method and Efficiency

Two-grade   cyclone duster or one-grade cyclone duster : The product collecting efficiency   for one-grade duster is ≥95%

Automatic Control   Instrument

Indicator of   temperature of hot air and humidity of air exhaust

Inlet Air
  Temperature

150-200

Outlet Air
  Temperature

80-100

Overall Dimension

 (mm)

L

5000

5500

7000

8000

9800

11000

12200

14100

15000

W

3000

3500

4000

5000

5700

6200

7000

7800

9000

H

4500

4600

5200

6500

7600

8100

9000

9850

11100

Note: 1.The actual dimensions can be determined according to the actual situation of the customer, the above size is for reference only.

    2.The above evaporation is the maximum evaporation.
