YPG Series Pressure Spraying Dryer

  • YPG Series Pressure Spraying Dryer

YPG Series Pressure Spraying Dryer

Tags:
Class: Dryer Series
Overview: YPG Series Pressure Spraying DryerINTRODUCTIONYPG pressure spraying (cooling) dryer uses a pressure atomizer, by means of the pressure of a diaphragm pump to atomize solution or slurry materials into fine droplets, thus significantly increase the surface o…
Order
Detail Images

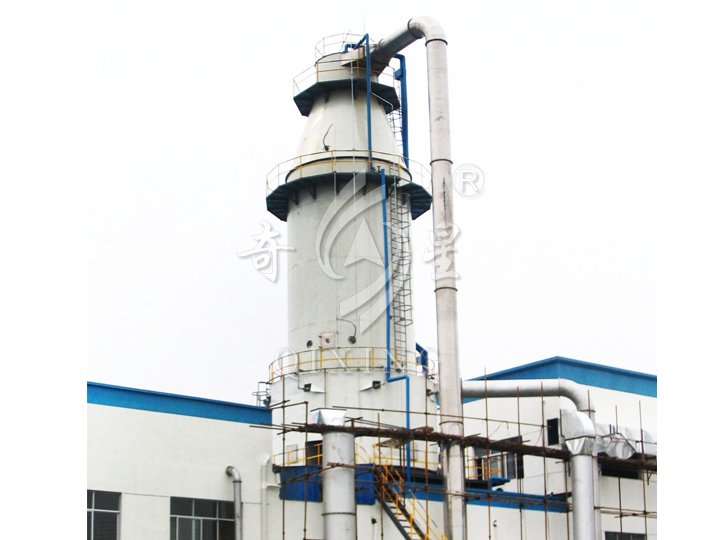

YPG Series Pressure Spraying Dryer


INTRODUCTION

YPG pressure spraying (cooling) dryer uses a pressure atomizer, by means of the pressure of a diaphragm pump to atomize solution or slurry materials into fine droplets, thus significantly increase the surface of materials and rapidly dries materials through a full heat exchange with hot air, to obtain fine articles or powder product.


WORKING PRINCIPLE

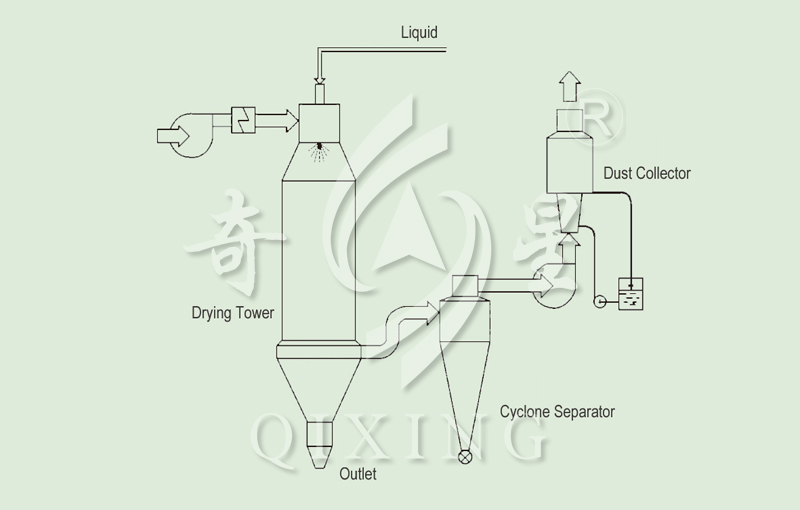

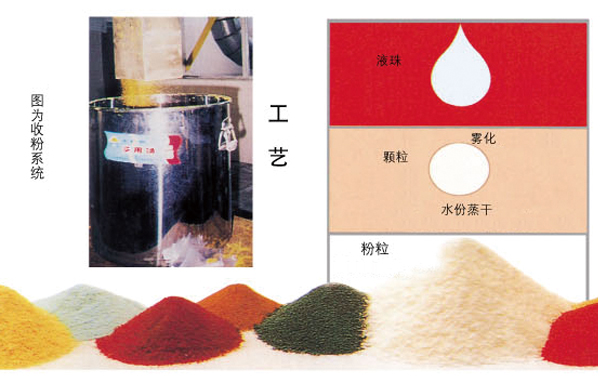

Operation process of this unit is that liquid is input under high pressure through the diaphragm pump, and then becomes mist to be discharged, decreasing in cocurrent flow with hot air. Most particles are collected by discharge opening in the bottom of the tower, while exhausts gas and fine powder are separated by cyclone separator, with exhausts gas discharged from the exhaust fan and powder collected by collecting canister in the lower end of the cyclone separator. Fan outlet can also be equipped with secondary dust removal devices, with a recovery rate of over 96-98%.


WORKING PRINCIPLE

◎ Fast drying speed; greatly increasing surface area of liquid after  atomization; in a stream of hot air can instantly evaporate 95% -98%of water; it takes only ten to dozens of seconds to complete  drying; especially suitable for drying heat-sensitive materials.
◎ All products are spherical particles, in uniform size, with good mobility, good solubility, high purity and good quality.
◎ Widely used; depending on the characteristics of the material it can dry with both hot air and cold air; strong adaptability to the materials.
◎ Simple and stable operation, easy to control and realize automated job.


APPLICAITON

Spray drying grain:
◎ Chemical: catalyst, resin, synthetic detergent, oil, sulfur, ammonium, dyes, dye intermediates, white carbon black, graphite, ammonium phosphate and so on.
◎ Food: amino acids and the like, quelite, protein, starch, dairy products, coffee aspirate, fish meal, meat powder and so on.
◎ Pharmacy: Chinese patent medicine, pesticides, antibiotics, medical drinking and so on.
◎ Ceramics: magnesium oxide, clay, various metal oxides, dolomite.
◎ Spray granulation: various ferrite, aluminum oxide, ceramic powder, pharmaceutical, heavy metallic super hardness steel, chemical fertilizer, granular detergent, Chinese patent medicine.
◎ Spray cooling granulation: amino fatty acid, paraffin wax, glycerate, tallow and the like, which is often used in aspect of spray crystallization, spray concentration and spray reaction.


TECHNICAL PARAMETERS


TECHNICAL PARAMETERS

    Model/Item

Unit

YPG-50

YPG-100

YPG-150

YPG-200

YPG-300

YPG-500

YPG-1000

Max. Evaporation Capacity
  (kg/h)

kg

50

100

150

200

300

500

1000

Overall Dimension
  (Φ×H)

mm

1600×
  8900

2000×
  11500

2400× 13500

2800×
  14800

3200×
  15400

3800×
  1880

4600×
  22500

The Pressure of High-pressure
  Pump

Mpa

2~10

Power

KW

8.5

14

22

24

30

82

30

Inlet Air
  Temperature

oC

140~350

Moisture Content of Finished Product

%

<5( can be reached to 0.5)

Material Recovery Rate

%

>97

Electric Heater

KW

75

120

150

temperature is lower than 200,the
  parameters should be calculated

Eelectricity
  + Steam

Mpa+KW

0.5+54

0.6+90

0.6+108

according to the practical condition

Hot Air Furnace

Kcal/h

100000

150000

200000

300000

400000

500000

1200000




    Null...
Share:
News
Products

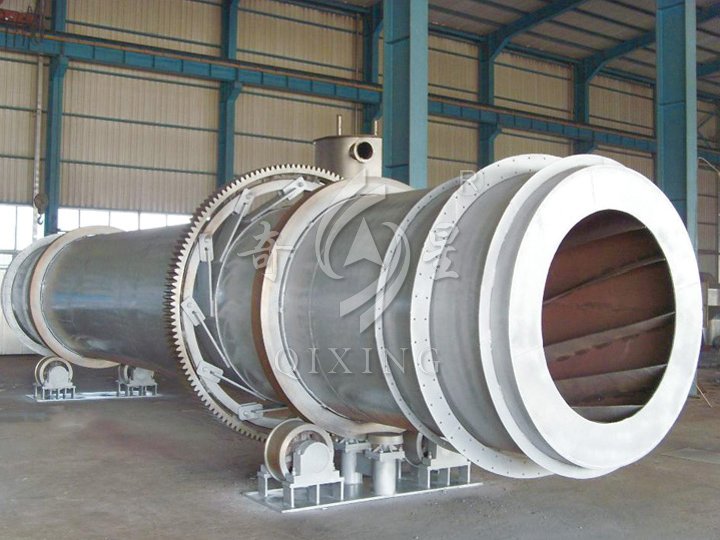

  • HZG Series Rotating Cylinder Dryer
    HZG Series Rotating Cylinder Dryer
  • LZG Series Helical Vibration Dryer
    LZG Series Helical Vibration Dryer

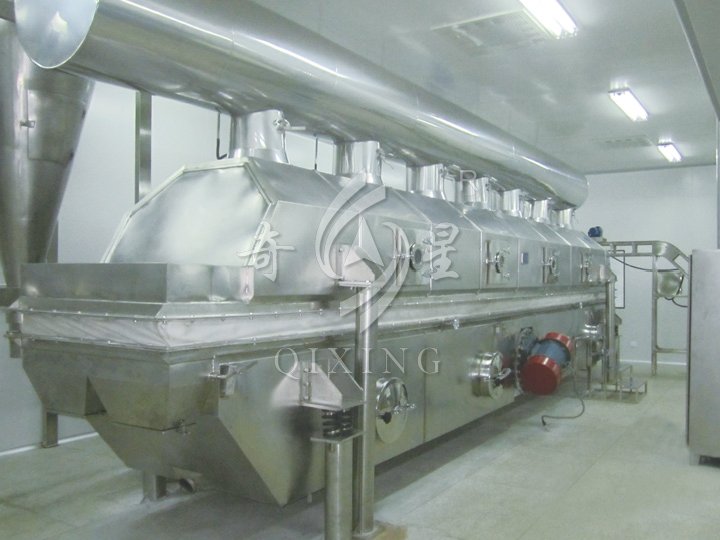

  • ZLG Series Vibrating Fluid-Bed Dryer
    ZLG Series Vibrating Fluid-Bed Dryer

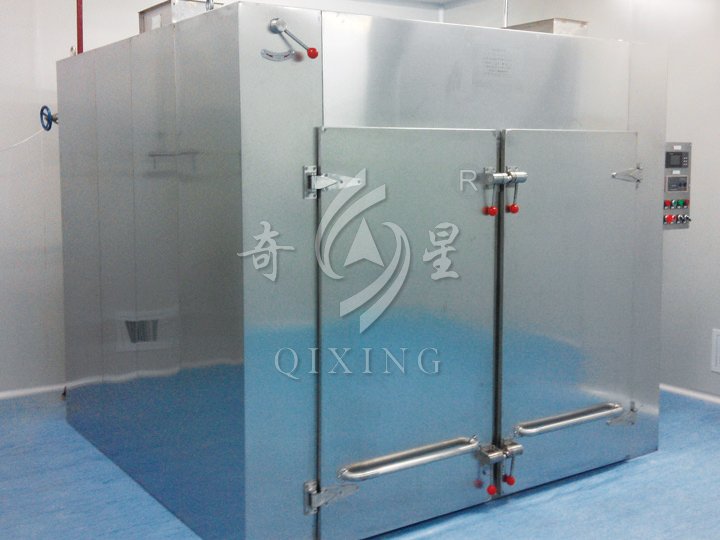

  • CT、CT-C Series Hot Air Circulating Oven
    CT、CT-C Series Hot Air Circulating Oven

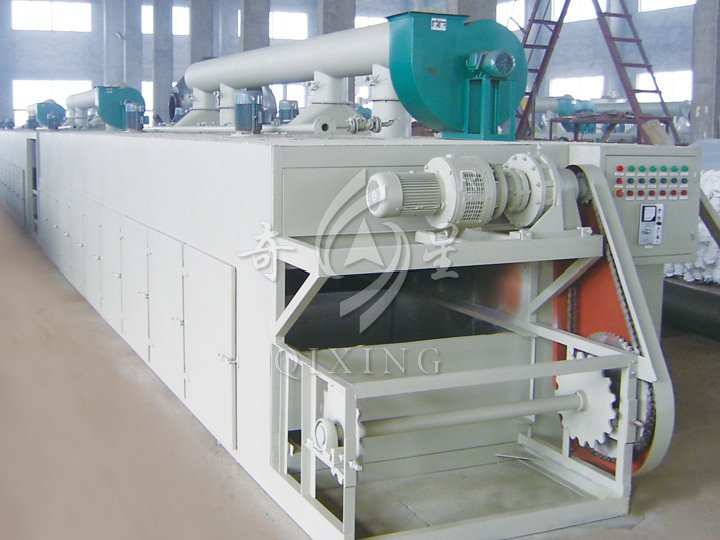

  • DW Series Monolayer、Multilayer Belt Dryer
    DW Series Monolayer、Multilayer Belt Dryer
  • PLG Series Tray Continuum Dryer
    PLG Series Tray Continuum Dryer

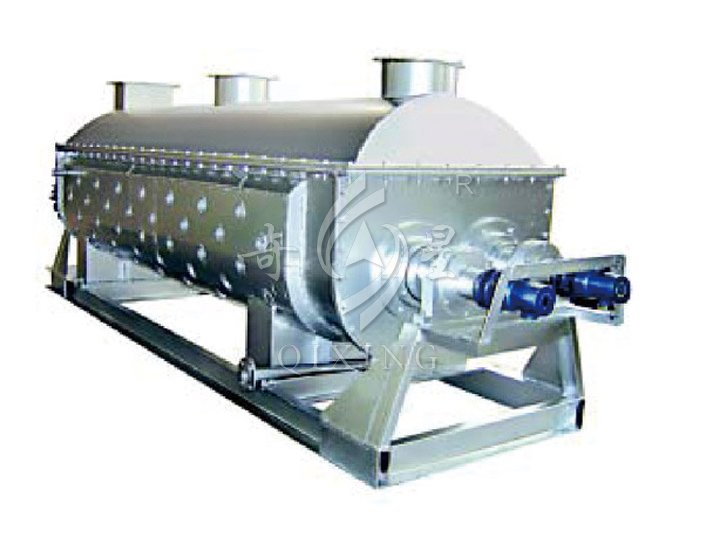

  • KJG Series Hollow Blade Dryer
