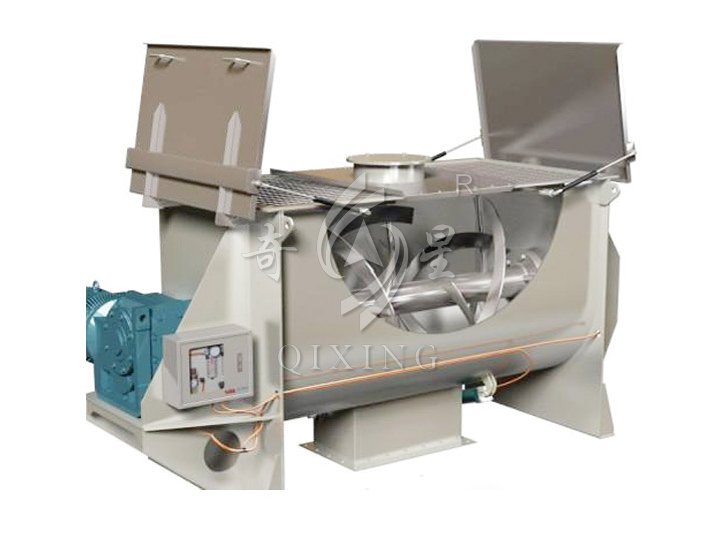

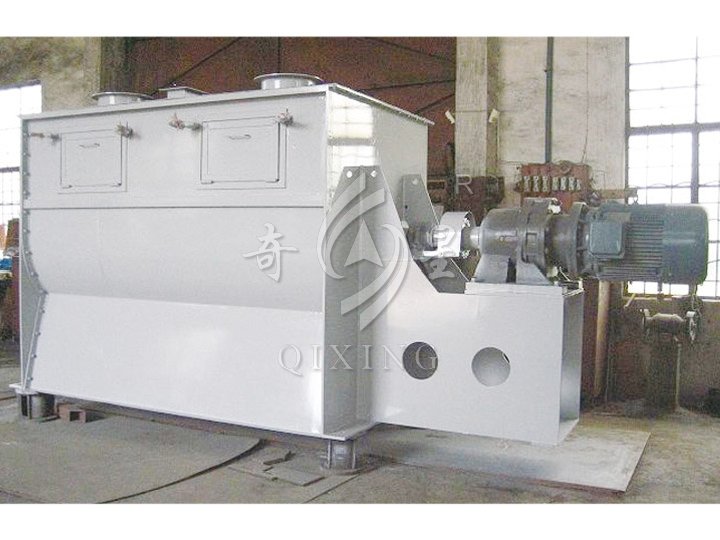

WLDH Series Horizontal Spiral Ribbon Mixer
WLDH Series Horizontal Spiral Ribbon Mixer
WLDH Series Horizontal Spiral Ribbon Mixer
WORKING PRINCIPLE
WLDH horizontal spiral ribbon mixer is composed of container, helical mixing blade and transmission parts. The helical mixing lade is generally made into 2 or 3 layers in which the external blade is responsible for pushing materials into corner and the internal one is to transport materials towards two sides, resulting in convection by mixing. The container could be made in round shape which will be convenient for reaction and drying in the later step.
FEATURES
◎High loading coefficient and less occupied area.
◎Hard to clean when mixing materials with viscidity or coherence.
APPLICATION
The spiral ribbon mixer is suitable for mixing materials with viscidity or particles with coherence as well as particles added with liquid or paste. It is also suitable for mixing a great amount of materials which are not frequently changed because it is hard to clean the cylinder after mixing those materials.

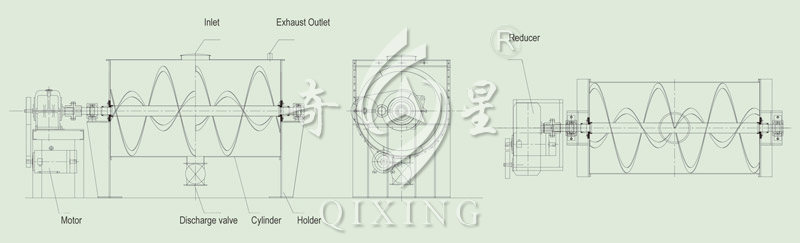

STRUCTURE SCHEMATIC
TECHNICAL PARAMETERS
Model / Item |
WLDH-0.1 |
WLDH-0.3 |
WLDH-0.5 |
WLDH-1 |
WLDH-1.5 |
WLDH-2 |
WLDH-3 |
WLDH-4 |
WLDH-6 |
WLDH-8 |
WLDH-10 |
Loading |
30-50 |
100-150 |
200-300 |
400-600 |
600-900 |
800-1200 |
1200-1800 |
1600-2400 |
2400-3600 |
3200-4800 |
4000-6000 |
Motor |
1.5-4 |
3-3.5 |
4-11 |
7.5-15 |
11-18.5 |
15-22 |
18.5-30 |
22-37 |
37-55 |
37-55 |
37-55 |
Weight(kg) |
300 |
500 |
900 |
1400 |
1900 |
2500 |
3100 |
3600 |
5300 |
6800 |
7800 |
Annotation: the equipments above could be divided into two types based on their materials—carbon steel (C) and stainless steel.
