CH Series Trough Type Mixer
CH Series Trough Type Mixer
Tags:
Class: Mixing Equipment Series
Overview: CH trough type mixer is suitable for mixing powder or liquid materials so as to mix main material and auxiliary one on the basis of fixed proportion.
Detail
Images
CH Series Trough Type Mixer
INTRODUCTION
CH trough type mixer is suitable for mixing powder or liquid materials so as to mix main material and auxiliary one on the basis of fixed proportion.
FEATURES
◎Those parts closely contacting the materials are all made by stainless steel. There is very little space between blades and barrel and is no dead corner.
◎Sealing devices are built on two ends of stirring shafts.
◎All of them are capable of keeping materials from leaking.
APPLICATION
It is well adopted in industries like pharmacy，chemicals， food，and so on.

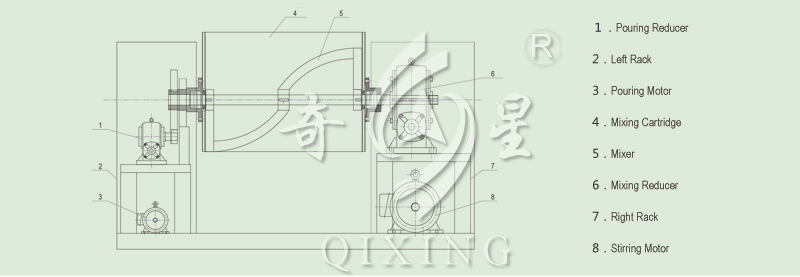

STRUCTURE SCHEMATIC
TECHNICAL PARAMETERS
|
Model/Item |
CH-100 |
CH-150 |
CH-200 |
CH-400 |
|
Motor Power（kw） |
2.2 |
3 |
3 |
5.5 |
|
Stirring Speed（rpm） |
24 |
24 |
24 |
24 |
|
Inverted Angle（°） |
105 |
105 |
105 |
105 |
|
Weight（kg） |
350 |
500 |
650 |
1200 |
|
Overall Dimension（mm） |
1400×500×1000 |
1600×600×1100 |
1800×700×1200 |
2000×820×1460 |
-
