SZH Series Double Cone Mixer
SZH Series Double Cone Mixer
Tags:
Class: Mixing Equipment Series
Overview: In SZH double cone mixer, powder or particles will be sent into double-cone container through the vacuum conveyer or manual feeding.
Detail
Images

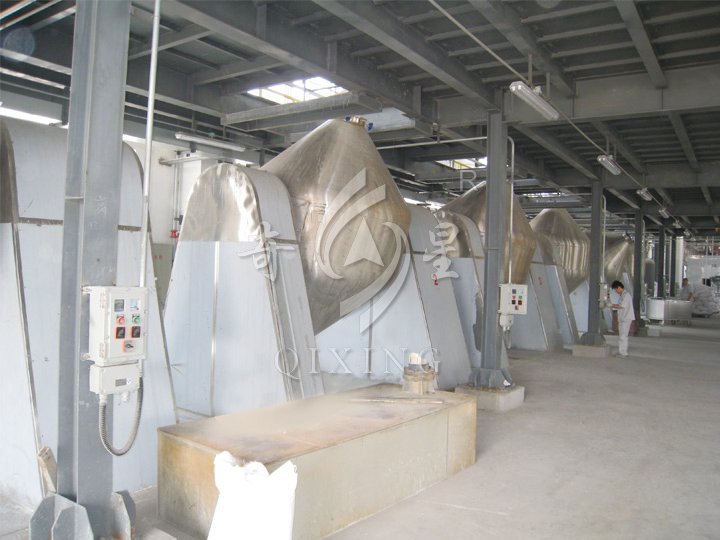

SZH Series Double Cone Mixer
WORKING PRINCIPLE
In SZH double cone mixer, powder or particles will be sent into double-cone container through the vacuum conveyer or manual feeding. The materials collide greatly and complexly in the container so as to be mixed uniformly when the container rotates continuously.
FEATURES
his equipment FEATURES its energy saving capacity, convenient operation, low labor intensity and high efficiency.
APPLICATION
This equipment is suitable for powder of particle mixing in industries like pharmacy, chemicals, food, and architectural material and so on.

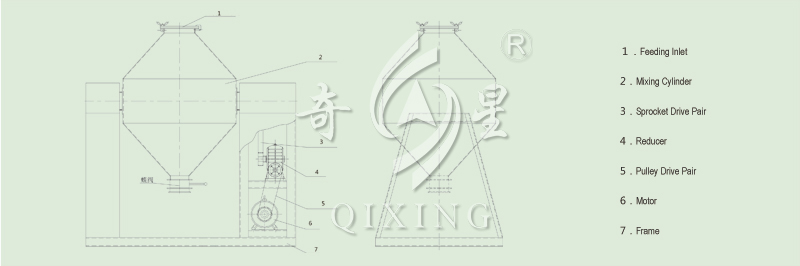

STRUCTURE SCHEMATIC
TECHNICAL PARAMETERS
| Mode / Item |
Production Capacity (kg/time) |
Total Volume (m3) |
Mixing Time |
Power |
Rotating Speed (r/min) |
Overall Dimension (mm) |
Weight (kg) |
| SZH-300 | 120 | 0.3 | 4~8 | 1.1 | 20 | 1685x650x1600 | 310 |
| SZH-500 | 200 | 0.5 | 4~8 | 2.2 | 12 | 2340x1220x2300 | 550 |
| SZH-1000 | 400 | 1 | 6~10 | 4 | 12 | 2830x1500x2545 | 950 |
| SZH-2000 | 800 | 2 | 6~10 | 5 | 12 | 3298x1700x2750 | 1600 |
| SZH-3000 | 1200 | 3 | 8~12 | 7.5 | 12 | 3700x1900x3000 | 2300 |
| SZH-4000 | 1200 | 4 | 8~12 | 7.5 | 12 | 3800x1900x3400 | 2800 |
| SZH-5000 | 2000 | 5 | 8~12 | 15 | 10 | 4400x2500x4000 | 3300 |
| SZH-10000 | 4000 | 10 | 8~12 | 30 | 8 | 4800x2700x4700 | 5000 |
