YK Series Oscillating Granulator
YK Series Oscillating Granulator
Tags:
Class: Granulator Series
Overview: YK Oscillating Granulator is to granulate pre-mixed material into required particles or to smash blocks of material into small particles.
Detail
Images

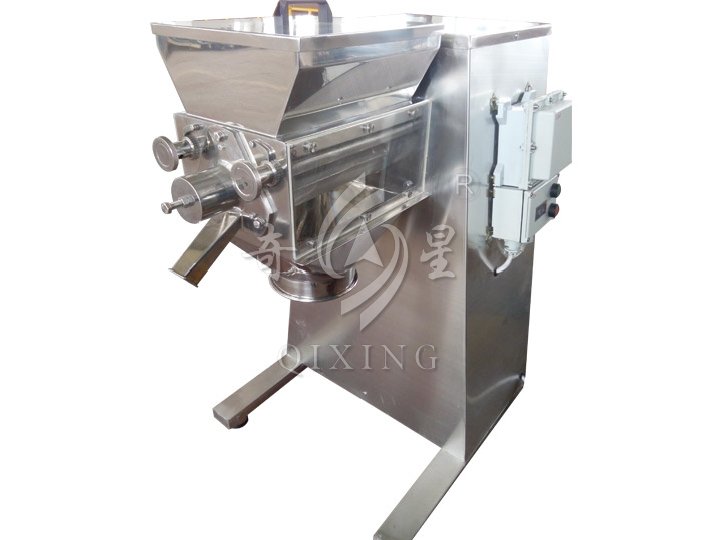

YK Series Oscillating Granulator
INTRODUCTION
YK Oscillation Granulator is mainly adopted in industries like pharmacy, chemicals and food so as to produce various particles which may be dried and made into different finished products. This equipment is also suitable to smash dry material solidified into blocks.
WORKING PRINCIPLE
YK Oscillating Granulator is to granulate pre-mixed material into required particles or to smash blocks of material into small particles.

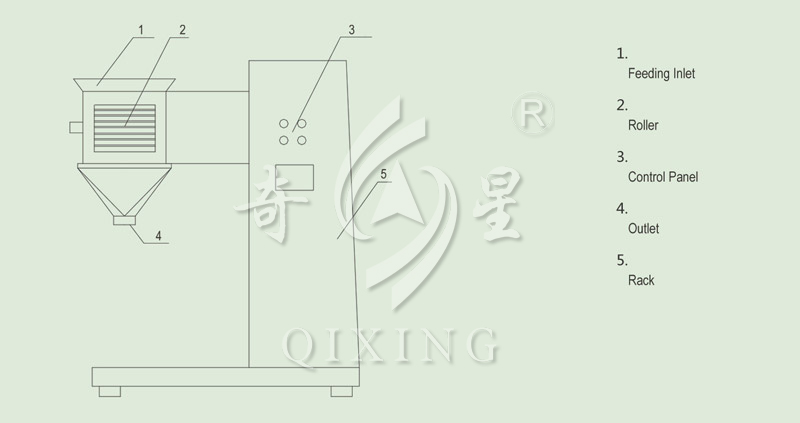

STRUCTURE SCHEMATIC
APPLICAITON
This machine is well used in industries in pharmacy, chemicals, food and solid beverage.
TECHNICAL PARAMETERS
|
Model / Item |
YK-160 | YK-320 |
| Production Capacity | 50-200 kg/h | 50-400 kg/h |
| Motor Power | 2.2kw | 7.5kw |
| Rotor Speed | 65rpm | 65rpm |
| Swing Angle | 360o | 360o |
| Rotor Diameter | Φ160mm | Φ320mm |
| Weight | 450kg | 750kg |
| Boundary Dimension | 1000×800×1300m | 1500×1200×1500m |
-
YK Series Oscillating Granulator
