GHL Series High Speed Mixer Granulator

Tags:
Overview: In GHL High Speed Mixer Granulator, powder material and binder are fully blended by mixture at the bottom of the cylindrical container into moist soft material, and then cut into uniform moister particles by the high-speed crusher on one side.
Order
Detail Images


GHL Series High Speed Mixer Granulator


WORKING PRINCIPAL

In GHL High Speed Mixer Granulator, powder material and binder are fully blended by mixture at the bottom of the cylindrical container into moist soft material, and then cut into uniform moister particles by the high-speed crusher on one side.


FEATURES

◎ Employ reasonable structure--horizontal cylinder structure.
◎ Employ gas flow closing drive shaft and it can be changed as channel to transmit water in process of cleaning.
◎ Fluidized granulation produces ball-shaped particles with fine mobility.
◎ 25% binder is reduced compared with traditional technology and drying time is shortened.
◎ Each batch experiences 2-minute dry blend and less 4-minute granulation, and the processing efficiency is improved 4-5 times.
◎ Dry blend, moisture blend and granulation are finished in one sealed container, improving efficiency.
◎ The whole process is under strict safety precautions.
◎ Jacket type might be adopted on request.


APPLICAITON

GHL High Speed Mixer Granulator is widely used in the industries of pharmacy, food, chemical, and so on.

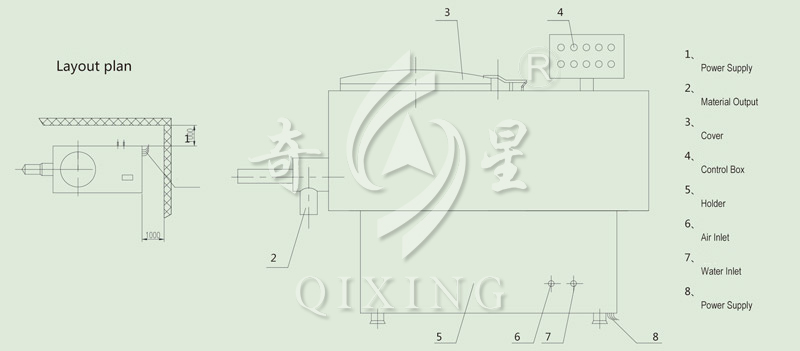

STRUCTURE SCHEMATIC



TECHNICAL PARAMETERS

Item / Model

GHL-10 GHL-50 GHL-150 GHL-200 GHL-250 GHL-300 GHL-400 GHL-600
Volume(L)  10  50  150  200  250  300  400  600
Yield (kg) 15  50  80   100  130  200  280
Mixing Velocity(r.p.m) 300/600  200/400  180/270  180/270   180/270  140/220  106/155  80/120
Mixing Power (kw) 1.5/2.2  4/4.5  6.5/8  9/11   9/11  13/16  18.5/22  22/30
Cutting Speed(r.p.m) 1500/3000  1500/3000  1500/3000  1500/3000   1500/3000   1500/3000  1500/3000    1500/3000
Cutting Power (kw) 0.68/1.1  1.3/1.8  2.4/3  4.5/5.5   4.5/5.5   4.5/5.5   6.5/8  9/11
Compressed Air Consumption(m3/min) 0.6  0.6  0.9  0.9   0.9  1.1  1.5  1.8
