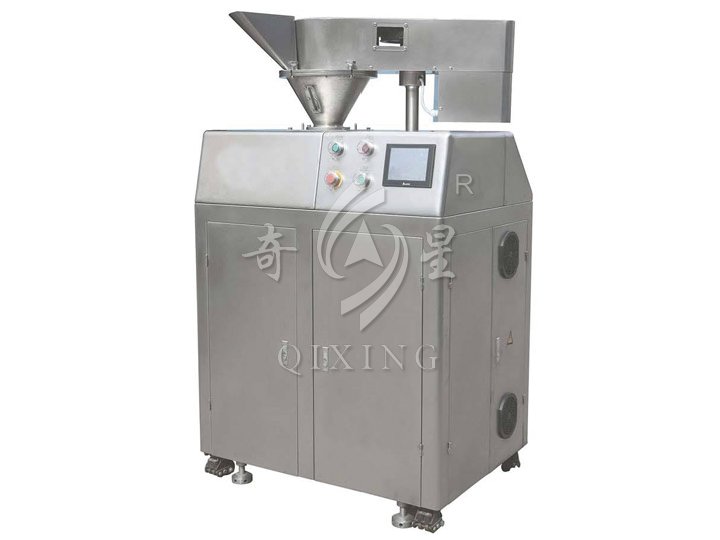

Dry Granulator
Dry Granulator
Dry Granulator
INTRODUCTION
The granulator is a new equipment that makes powder to particles directly. The structure is novel and reasonable. It also has stable and reliable performance, and is easy to clean and maintain. The particles made from this granulator could be tablet, granules, capsules and so on. The equipment is particularly suitable for granulation of materials that can not be solved by general wet granulators.
FEATURES
◎ The density of dry power granule is homogeneous and has goos solubility.
◎ Having special Feeding construction to make effective feeding.
◎ The roller is cooled by circulating water to avoid material adhering to itself.
◎ Do not need water, ethanol, and other wetting agent; do not need the second heating and drying. Less step, high efficiency, and low cost.
APPLICAITON
◎ Pharmaceutical Industry: tablet particles, capsules, etc.
◎ Food Industry: food granules, seasoned granules, etc.
◎ Plastic Industry: all kinds of plastic molding particles.
◎ Chemical Industry: catalysts, pigments, detergents, other chemical raw materials, etc.
TECHNICAL PARAMETERS
Model / Item |
80 | 120 |
Productive Capacity | 20-60 | 30-100 |
Volume of Hopper(L) | 3 | 5 |
Size of Roller(mm) |
200(D)x 80(W) |
200(D)x 120(W) |
Max.Pre-Pressure of Roller(t) | 10 | 15 |
Rotating Speed of Raw Material(r.p.m) | Adjustable | Adjustable |
Feeding Speed of Raw Material(r.p.m) | Adjustable | Adjustable |
Power of Motor of Driving Roller(kw) | 4 | 7.5 |
Power of Motor of Feeding(kw) | 1.5 |
2.2 |
Power of Motor of Granulating(kw) | 0.75 | 2.2 |
Power of Oil Pump(kw) | 1.1 | |
The Way of the Speed Control | Electromagnetic Speed Control |
