20B、30B、40B、50B Series Universal High Effective Dust-Collecting Grinder (set)
20B、30B、40B、50B Series Universal High Effective Dust-Collecting Grinder (set)
Tags:
Class: Grinder Series
Overview: The set of 30B High Effective grinder is composed by the grinder, ESC collector of raw material and ESC collective duster. The problem of flying dust in the process of grinding could be solved.
Detail
Images

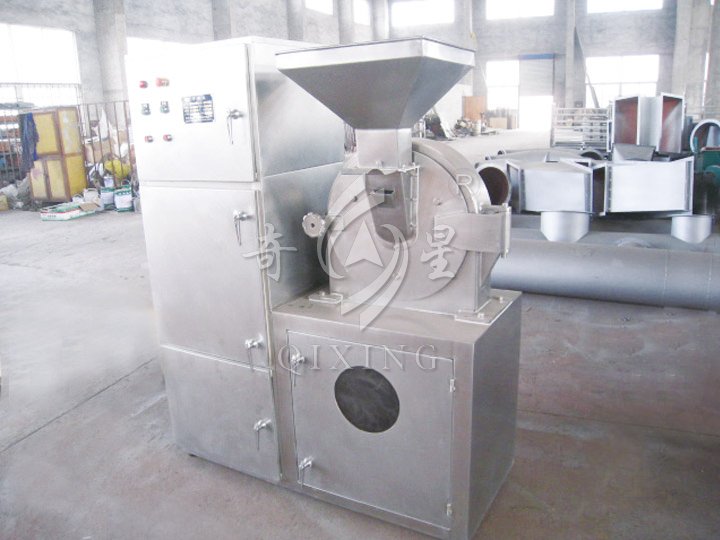

20B、30B、40B、50B Series Universal High Effective Dust-Collecting Grinder (set)
WORKING PRINCIPLE
The set of 30B High Effective grinder is composed by the grinder, ESC collector of raw material and ESC collective duster. The problem of flying dust in the process of grinding could be solved. Bearing the force of impact, shear, friction and mutual percussion, materials, coming into the crushing chamber in which movable toothed disk and stationary one rotate very fast, could be crushed and become needed powder after the filtration.
APPLICATION
This equipment (set) is suitable for the grinding of materials in industries like chemicals, pharmacy, food, pesticides. It is a new generation grinder with functions of grinding and dust collection and is well adopted.
TECHNICAL PARAMETERS
|
Model / Item |
unit | 20B | 30B | 40B | 50B |
| Production Capacity | kg/h | 60-150 | 100-300 | 160-600 | 200-800 |
| Spindle Speed | r/min | 4500 | 3800 | 3400 | 3400 |
| Size of Input Granules | mm | ≤6 | ≤6 | ≤6 | ≤6 |
| Crushing Fineness | mesh | 20-120 | 20-120 | 20-120 | 20-120 |
| Crushing Motor | kw | 4 | 5.5 | 7.5 | 11 |
| Dust Collecting Motor | kw | 0.55 | 0.55 | 0.55 | 0.55 |
|
Boundary Dimension |
L*W*H | 1100x600x1650 | 1200x700x1700 | 1300x700x1700 | 1500x800x1700 |
-
