20B、30B、40B、50B Series Universal High Effective Grinder

< >

20B、30B、40B、50B Series Universal High Effective Grinder

Tags:

Overview: The grinder usesmovable knife and fixed knife at the same time to rotate at high speed in the crushing chamber. The material is cut in the chamber and discharged from the lower discharge port. and the fineness can be replaced.

Order

Detail Images

20B、30B、40B、50B Series Universal High Effective Grinder

WORKING PRINCIPLE

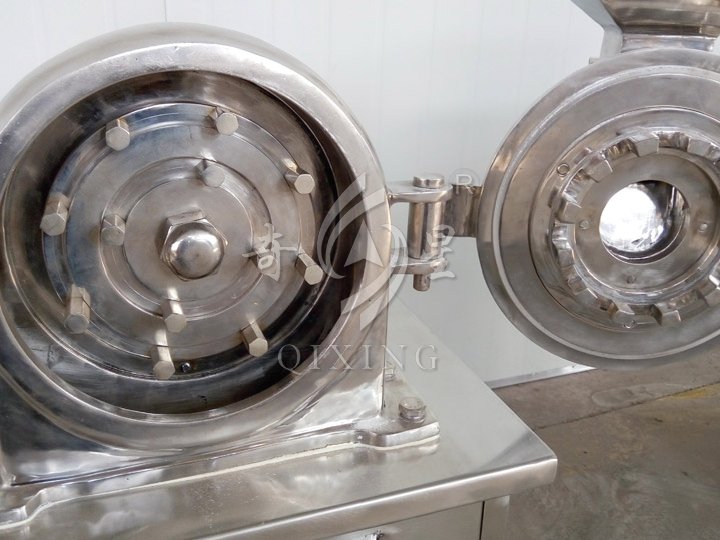

The grinder usesmovable knife and fixed knife at the same time to rotate at high speed in the crushing chamber. The material is cut in the chamber and discharged from the lower discharge port. and the fineness can be replaced. The crush fineness could be decided by the screen.

FEATURES

The structure of the grinder is simple, durable, stable, having good smashing effects, easy to disassemble and maintain, and corrosion-resistant.

APPLICATION

This grinder is suitable for the crushing brittle materials in the industries of pharmacy, chemical, food, pesticide, etc. It is used widely.

TECHNICAL PARAMETERS

Model / Item	Unit	20B	30B	40B	50B
Production Capacity	kg/h	60-150	100-300	160-600	200-800
Spindle Speed	r/min	4500	3800	3400	3400
Size of Input Granules	mm	≤6	≤6	≤6	≤6
Crushing Fineness	mesh	20-120	20-120	20-120	20-120
Motor Power	kw	4	5.5	7.5	11
Weight	kg	250	320	550	800

20B、30B、40B、50B Series Universal High Effective Grinder
20B、30B、40B、50B Series Universal High Effective Grinder
20B、30B、40B、50B Series Universal High Effective Grinder
